High capacity float and thermostatic (internal air vent) steam traps are designed for draining condensate from all types of low and medium pressure steam heating and process equipment.
Modulating discharge. Discharges condensate at steam temperature. Excellent air venting (by thermostatic air vent).
220 oC
16 bar(g)
A216 Gr. WCB
End connection: Screwed NPT / BSPT / BSP / Flanged / Socket Weld

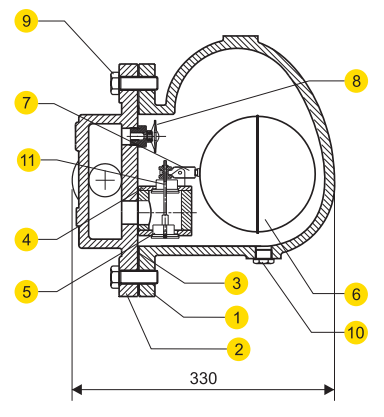

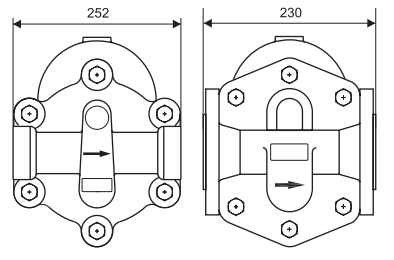

| NO. | PART | MATERIAL | QTY. (Nos.) |
|---|---|---|---|
| 1. | BODY | ASTM A216 Gr. WCB | 01 |
| 2. | COVER | ASTM A216 Gr. WCB | 01 |
| 3. | GASKET | GRAPHITE WITH SS REINFORCEMENT | 01 |
| 4. | VALVE SEAT | ASTM A743 Gr.CA40 / AISI 410/420 | 02 |
| 5. | VALVE PIN | AISI 410/420 | 02 |
| 6. | BALL FLOAT | AISI 304 | 01 |
| 7. | LEVER | AISI 304 | 01 |
| 8. | AIR VENT | STAINLESS STEEL | 01 |
| 9. | BOLT | ASTM A193 Gr. B7 | 06 |
| 10. | DRAIN PLUG | CARBON STEEL | 01 |
| 11. | STEM | AISI 304 / AISI 410 | 01 |
| 12. | SLR UNIT | AISI 304 | 01 |
| Screwed/SW | Flanged |
|---|---|
| 31 kg | 35 kg |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
6) End Connections
