High capacity float and thermostatic steam trap with internal air vent, designed for draining condensate from all types of low and medium pressure steam heating and process equipment.
Modulating discharge. Discharges condensate at steam temperature. Excellent air venting (by thermostatic air vent).
220 oC
16 bar(g)
CAST IRON
End connection: Screwed NPT / BSPT / BSP

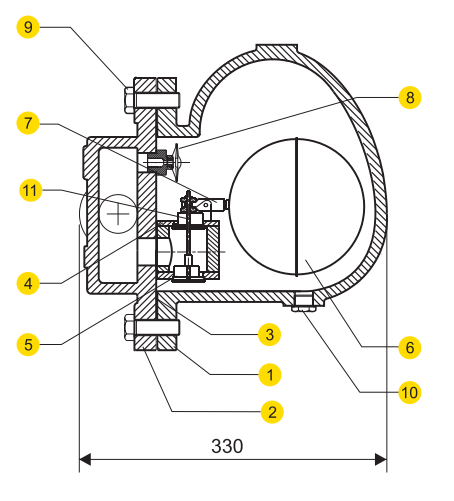

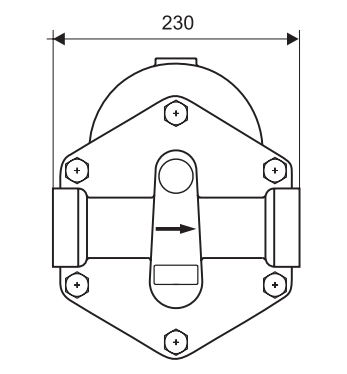

| No. | PART | MATERIAL | QTY. (Nos.) |
|---|---|---|---|
| 1. | BODY | CAST IRON | 01 |
| 2. | COVER | CAST IRON | 01 |
| 3. | GASKET | GRAPHITE WITH SS REINFORCEMENT | 01 |
| 4. | VALVE SEAT | AISI 410/420 | 02 |
| 5. | VALVE PIN | AISI 304 | 02 |
| 6. | BALL FLOAT | AISI 304 | 01 |
| 7. | LEVER | AISI 304 | 01 |
| 8. | AIR VENT | STAINLESS STEEL | 01 |
| 9. | BOLT | HIGH TENSILE | 06 |
| 10. | DRAIN PLUG | CARBON STEEL | 01 |
| 11. | STEM | AISI 304 | 01 |
| 12. | SLR UNIT | AISI 304 | 01 |
| Size | SCR / SW |
|---|---|
| DN40, DN50 | around 30 kg. |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
6) End Connections
