All stainless steel ball float and thermostatic (internal air vent) steam traps are designed for draining condensate from all types of low and medium pressure steam heating and process equipment.
Modulating discharge. Discharges condensate at steam temperature. Excellent air venting (by thermostatic air vent).
220 oC
16 bar(g)
A351 Gr. CF8
End connection: Screwed NPT / BSPT /BSP
| NO. | PART | MATERIAL | QTY. |
|---|---|---|---|
| 1. | BODY | ASTM A351 Gr. CF8 | 01 |
| 2. | COVER PLATE | ASTM A351 Gr. CF8 | 01 |
| 3. | TOP COVER | AISI 304 | 01 |
| 4. | BALL FLOAT & LEVER ASSY. | AISI 304 | 01 |
| 5. | BRACKET ASSY. | AISI 304 | 01 |
| 6. | VALVE SEAT | AISI 410/420 | 01 |
| 7. | AIR VENT ASSY. | STAINLESS STEEL | 01 |
| 8. | COVER GASKET | GRAPHITE WITH SS REINFORCEMENT | 01 |
| 9. | BOLT | STAINLESS STEEL | 04 |
| 10. | DRAIN PLUG | STAINLESS STEEL | 01 |
| 11. | GASKET | COPPER | 01 |
| 12. | FLANGE | ASTM A182 Gr. F304 | 02 |

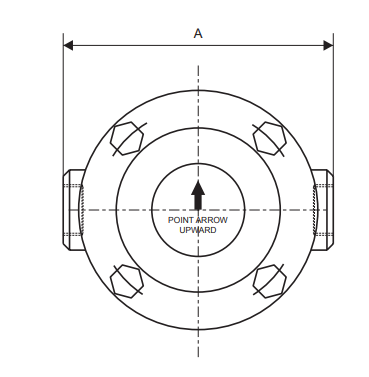

| Size | A | B | C | D | E | |
|---|---|---|---|---|---|---|
| #150 | #300 | |||||
| DN15,20 | 127 | 120 | 60 | 145 | 200 | 210 |
| Size | SCR / SW | FLANGED | |
|---|---|---|---|
| #150 | #300 | ||
| DN15 | 3.3 kg | 4.6 kg | 4.9 kg |
| DN20 | 3.3 kg | 5.0 kg | 5.8 kg |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
6) Horizontal/Vertical
7) End Connections
8) Flow Direction
