PT64H float and thermostatic (internal air vent) steam traps are designed for draining condensate from building heating installations. They can also be used in low pressure industrial installations.
Modulating discharge of hot condensate at close to saturation temperature. Good air venting facilitates a fast start-up. Suitable for high condensate load.
220 oC
16 bar(g)
CAST IRON
End connection: Screwed NPT / BSPT / BSP

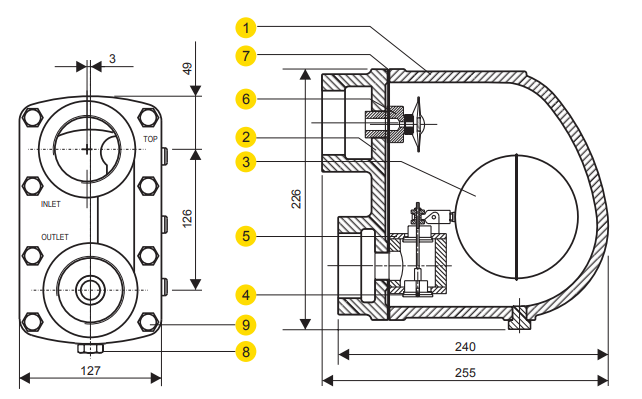

| No. | PART | MATERIAL | QTY. |
|---|---|---|---|
| 1. | BODY | CAST IRON | 01 |
| 2. | COVER | CAST IRON | 01 |
| 3. | BALL FLOAT & LEVER ASSY. | AISI 304 | 01 |
| 4. | VALVE | AISI 410/420 | 02 |
| 5. | VALVE SEAT | AISI 410/420 | 02 |
| 6. | AIR VENT | STAINLESS STEEL | 01 |
| 7. | GASKET | GRAPHITE WITH SS REINFORCEMENT | 01 |
| 8. | DRAIN PLUG | CARBON STEEL | 01 |
| 9. | BOLT | HIGH TENSILE | 08 |
| Size | SCR / SW |
|---|---|
| DN50 | 13.2 kg |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
6) End Connections
