PT62 float and thermostatic (internal air vent) steam traps are designed for draining condensate from all types of low and medium pressure steam heating and process equipment.
Modulating discharge. Discharges condensate at steam temperature. Excellent air venting (by thermostatic air vent).
400 oC
32 kg/cm2 (g)
A216 Gr. WCB
End connection: Screwed NPT / BSPT / BSP / Flanged / Socket Weld

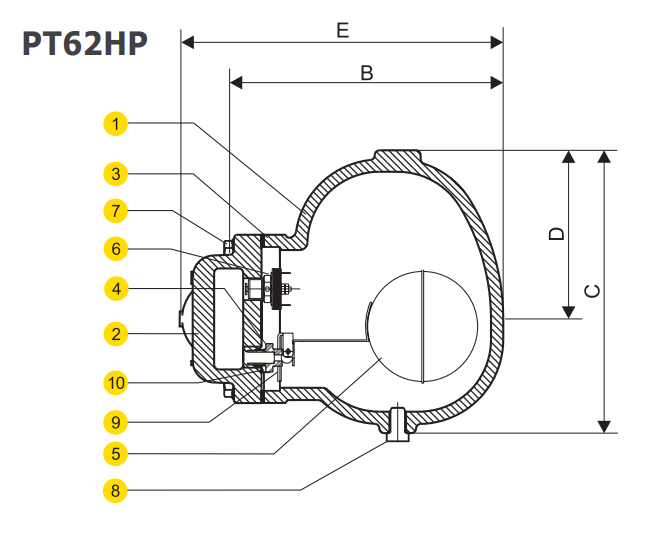

| NO. | PART | MATERIAL | QTY. (Nos.) |
|---|---|---|---|
| 1. | BODY | ASTM A216 Gr. WCB | 01 |
| 2. | COVER | ASTM A216 Gr. WCB | 01 |
| 3. | GASKET | GRAPHITE WITH SS REINFORCEMENT | 01 |
| 4. | VALVE SEAT | AISI 410/420 | 01 |
| 5. | BALL FLOAT & LEVER ASSY. | AISI 304 | 01 |
| 6. | AIR VENT | BIMETAL/SS | 01 |
| 7. | BOLT | ASTM A193 Gr. B7 | 04 |
| 8. | DRAIN PLUG | CARBON STEEL | 01 |
| 9. | BRACKET ASSY. | AISI 304 | 01 |
| 10. | GASKET | COPPER | 01 |
| 11. | SLR UNIT | AISI 304 | 01 |
| SIZE | A | B | C | D | E | WEIGHTS | |
|---|---|---|---|---|---|---|---|
| #150, PN16, PN40 | #300 | ||||||
| DN15 | 120 | 187 | 170 | 111 | 220 | 5.4 | 5.9 |
| DN20 | 120 | 187 | 170 | 111 | 220 | 5.8 | 6.5 |
| DN25 | 120 | 187 | 170 | 111 | 220 | 11.5 | 12.5 |

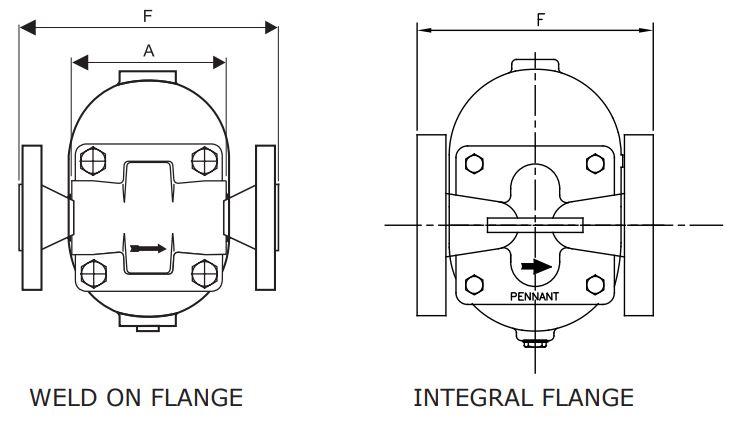

| SIZE | F | ||
|---|---|---|---|
| WNRF #150 | WNRF #300 | INT. FLANGE (#150, 300, PN16 & PN40) | |
| DN15 | 195 | 205 | 150 |
| DN20 | 200 | 210 | 150 |
| DN25 | 210 | 220 | 160 |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
6) End Connections
7) IBR/NIBR
