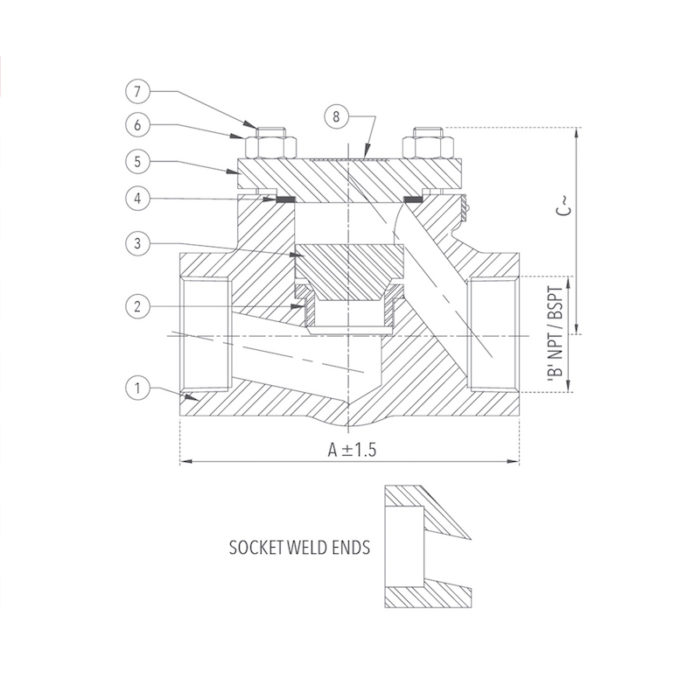

| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Forged Carbon Steel | ASTM A 105 | 1 |
| 2 | Body Seat Ring | Stainless Steel | ASTM A 276 Type 410 / ASTM A182 Gr. F6a | 1 |
| 3 | Disc | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 4 | Gasket | Spiral Wound (Type 316) Graphite Filled | – – – | 1 |
| 5 | Cover | Forged Carbon Steel | ASTM A 105 | 1 |
| 6 | Stud | Alloy Steel | ASTM A 193 Gr. B7 | 4 |
| 7 | Nut | Alloy Steel | ASTM A 194 Gr. 2H | 4 |
| 8 | Identification Plate | Aluminium | – – – | 1 |
| Size (Inches) | Size (mm) | A ±1.5 | B | C ~ |
|---|---|---|---|---|
| 1/2 | 15 | 85 | 1/2" | 61 |
| 3/4 | 20 | 86 | 3/4" | 61 |
| 1 | 25 | 101 | 1" | 76 |
| 1 1/4 | 32 | 140 | 1 1/4" | 105 |
| 1 1/2 | 40 | 140 | 1 1/2" | 105 |
| 2 | 50 | 164 | 2" | 105 |
