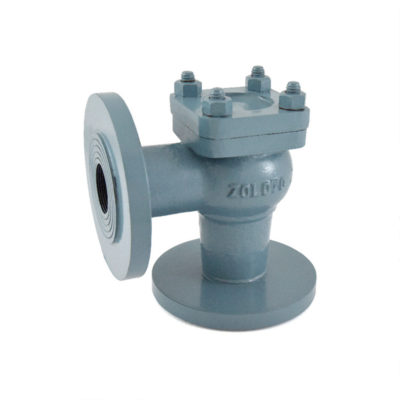

Cast Iron Horizontal Lift Check Valve Angle Pattern (Flanged)

Article Code: 1068

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Flanged Ends to DIN 2533 PN 16RF.
Angle Pattern, Bolted Cover.
Renewable 13% Cr. Stainless Steel (S.S 410) working parts.
Minimum pressure drop inside the body due to streamlined body design.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 26 kg/cm²g (370 psig)
Working Pressure (Steam) : 13 kg/cm²g (185 psig)
Maximum Working Temperature : 220^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Body	Cast Iron	IBR 86-93 Gr. A	1
2	Body Seat Ring	Stainless Steel	ASTMA 276 Type 410 / ASTMA 182 Gr. F6a	1
3	Disc Ring	Stainless Steel	ASTMA 276 Type 410 / ASTMA 182 Gr. F6a	1
4	Disc	Cast Iron	IBR 86-93 Gr. A	1
5	Gasket	Steam Jointing Sheet	IS 2712 Gr. W/3	1
6	Bonnet	Cast Iron	IBR 86-93 Gr. A	1
7	Nuts	Carbon Steel	IS 1367	As Reqd.
8	Studs	Carbon Steel	IS 1367	As Reqd.

Product GAD

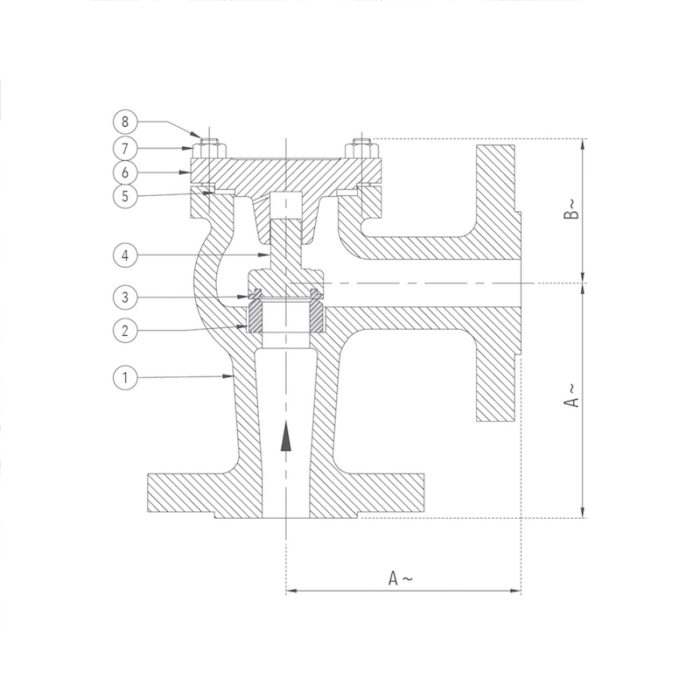

Cast Iron Horizontal Lift Check Valve (Angle Pattern) (Flanged) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ~	B ~
1/2	15	90	54
3/4	20	95	55
1	25	100	58
1 1/4	32	105	66
1 1/2	40	115	78
2	50	125	85
2 1/2	65	145	95
3	80	155	110
4	100	175	125
6	150	225	182
8*	200	275	190
