Bronze Horizontal Lift Check Valve (Flanged)

Article Code: 1044

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Flanged Ends to BS 10 Table ‘H’.
Straight Pattern, Screwed / Bolted Cover.
Renewable 13% Cr. Stainless Steel (S.S 410) working parts.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 35.15 kg/cm²g (500 psig)
Working Pressure (Steam) : 17.58 kg/cm²g (250 psig)
Maximum Working Temperature : 225^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Body	Bronze	IBR 282 (a) (iv) Gr. B	1
2	Body Seat Ring	Stainless Steel	ASTM A276 Type 410	1
3	Disc	Stainless Steel	ASTM A276 Type 410	1
4	Cover	Bronze	IBR 282 (a) (iv) Gr. B	1

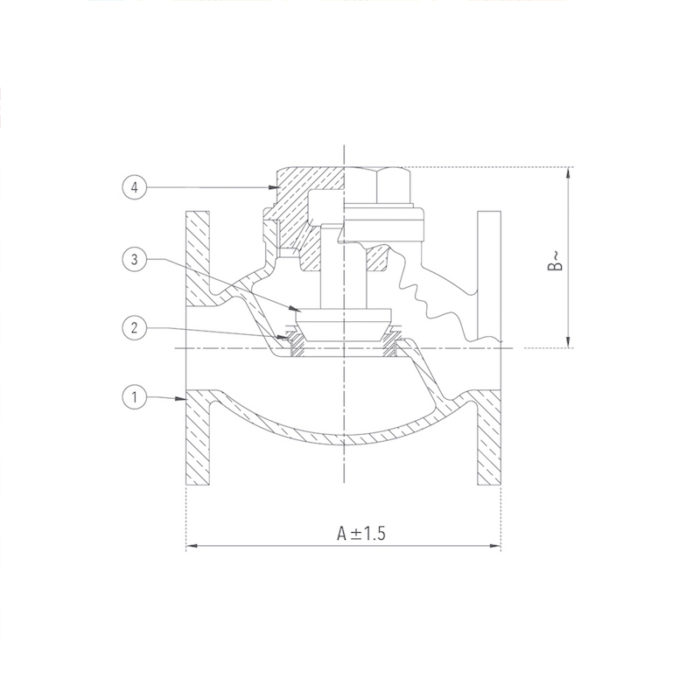

Product GAD

Bronze Horizontal Lift Check Valve (Flanged) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B ~	C
1/2	15	83	55	1/2"
3/4	20	95	55	3/4"
1	25	111	65	1"
1 1/4	32	133	78	1 1/4"
1 1/2	40	152	82	1 1/2"
2	50	178	91	2"
