Bronze Horizontal Check Valve No.9 (Flanged)

Article Code: 1014

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Flanged Ends to BS 10 Table ‘D’.
Screwed in Bonnet.
Permits flow in one direction and shuts automatically if the flow reverses.
Renewable 13% Cr. Stainless Steel (S.S 410) working parts.
Metal Disc is mushroom shaped with spherical seating surface.
Meant for Horizontal Lines Only.
Disc is guided in Body as well as in Bonnet.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 35 kg/cm²g (500 psig)
Seat : 10.55 kg/cm²g (150 psig)
Maximum Working Temperature : 225^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Body	Bronze	IS 318 Gr. LTB 2	1
2	Body Seat Ring	Stainless Steel	ASTM A276 Type 410	1
3	Disc	Stainless Steel	ASTM A276 Type 410	1
4	Bonnet	Bronze	IS 318 Gr. LTB 2	1

Product GAD

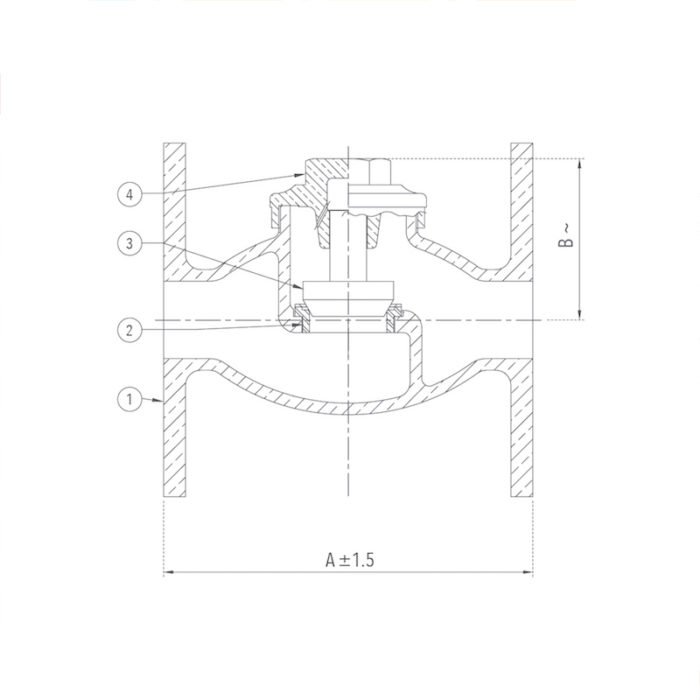

Bronze Horizontal Check Valve No.9 (Flanged) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B ~	C
1/2	15	82	48	1/2"
3/4	20	96	50	3/4"
1	25	112	61	1"
1 1/4	32	119	72	1 1/4"
1 1/2	40	132	84	1 1/2"
2	50	157	93	2"
2 1/2	65	185	109	2 1/2"
3	80	213	121	3"
4	100	248	146	4"
