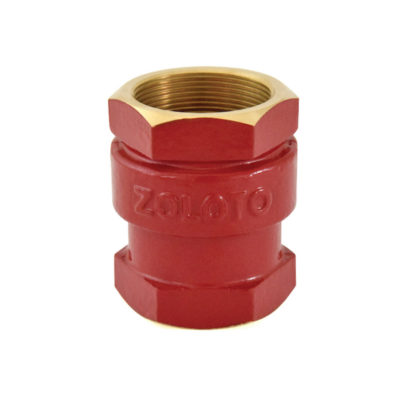

Bronze Vertical Check Valve (Screwed)

Article Code: 1009

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Screwed Female Ends to IS 554 / BS 21 / ISO 7.
Single Piece Design, Integral Seat.
Meant for Vertical Lines Only.
Permits flow in one direction and shuts automatically if the flow reverses.
Spring Loaded and ‘O’ Ring Type.
Also available with metal to metal seating.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 25 kg/cm²g (350 psig)
Seat : 16 kg/cm²g (225 psig)
Maximum Working Temperature : 80^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Body	Bronze	IS 318 Gr. LTB 2	1
2	Disc	Bronze	IS 318 Gr. LTB 2	1
3	‘O’ Ring	Nitrile Rubber	IS 5192 – 1	1
4	Spring	Stainless Steel	Type 304	1
5	Disc Nut	Brass	– – –	1
6	Split Pin	Brass	– – –	1

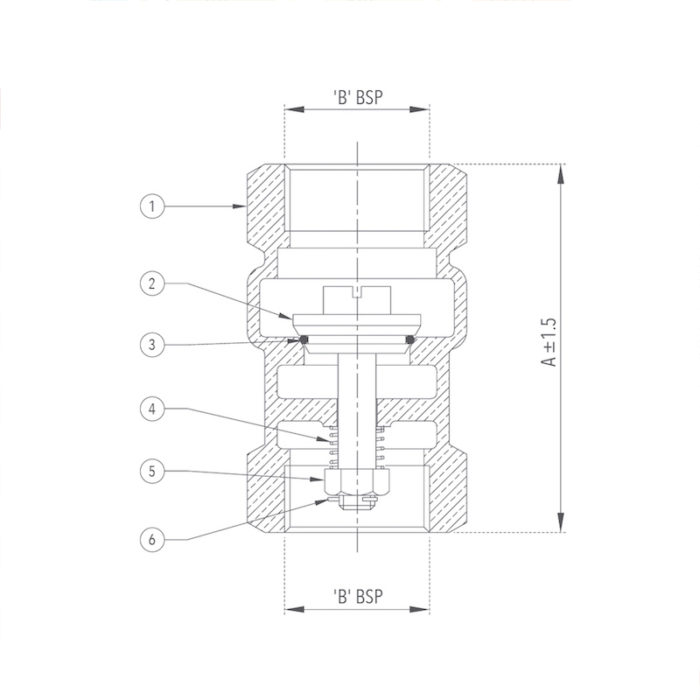

Product GAD

Bronze Vertical Check Valve (Screwed) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B
1/2	15	55	1/2"
3/4	20	66	3/4"
1	25	76	1"
1 1/4	32	80	1 1/4"
1 1/2	40	85	1 1/2"
2	50	93	2"
2 1/2	65	114	2 1/2"
3	80	118	3"
4	100	141	4"
