Bronze Horizontal Lift Check Valve (Screwed)

Article Code: 1043

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Screwed Female Ends to BSPT.
Straight Pattern, Screwed / Bolted Cover.
Renewable 13% Cr. Stainless Steel (S.S 410) working parts.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 35.15 kg/cm²g (500 psig)
Working Pressure (Steam) : 17.58 kg/cm²g (250 psig)
Maximum Working Temperature : 225^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Body	Bronze	IBR 282 (a) (iv) Gr. B	1
2	Body Seat Ring	Stainless Steel	ASTM A276 Type 410	1
3	Disc	Stainless Steel	ASTM A276 Type 410	1
4	Cover	Bronze	IBR 282 (a) (iv) Gr. B	1

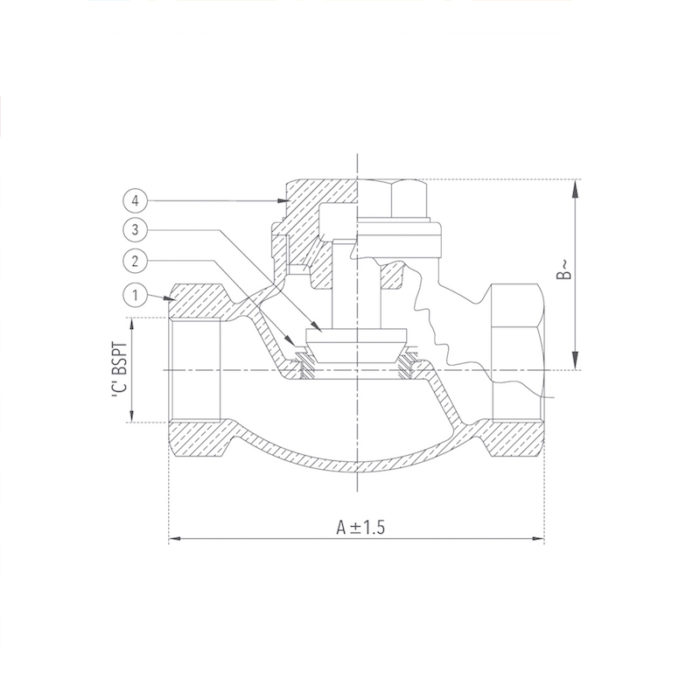

Product GAD

Bronze Horizontal Lift Check Valve Screwed Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B ~	C
1/2*	15*	75	40	1/2"
3/4*	20*	85	45	3/4"
1*	25*	95	55	1"
1 1/4	32	110	59	1 1/4"
1 1/2	40	120	65	1 1/2"
2	50	145	74	2"
2 1/2	65	165	85	2 1/2"
3	80	185	105	3"
4	100	216	131	4"
