Bronze Horizontal Check Valve (Screwed)

Article Code: 1010

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Screwed Female Ends to IS 554 / BS 21 / ISO 7.
Screwed in Bonnet, Integral Seat.
Permits flow in one direction and shuts automatically if the flow reverses.
Metal Disc is mushroom shaped with spherical seating surface.
Meant for Horizontal Lines only.
Disc is guided in Body as well as in Bonnet.
Medium Pattern.
Also available with metal to metal seating.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 20 kg/cm²g (285 psig)
Seat : 13.5 kg/cm²g (192 psig)
Maximum Working Temperature : 80^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Body	Bronze	IS 318 Gr. LTB 2	1
2	Disc	Bronze	IS 318 Gr. LTB 2	1
3	Bonnet	Bronze / Forged Brass	IS 318 Gr. LTB 2 / IS 6912 Gr. FLB	1
4	‘O’ Ring	Nitrile Rubber	IS 5192 – 1	1

Product GAD

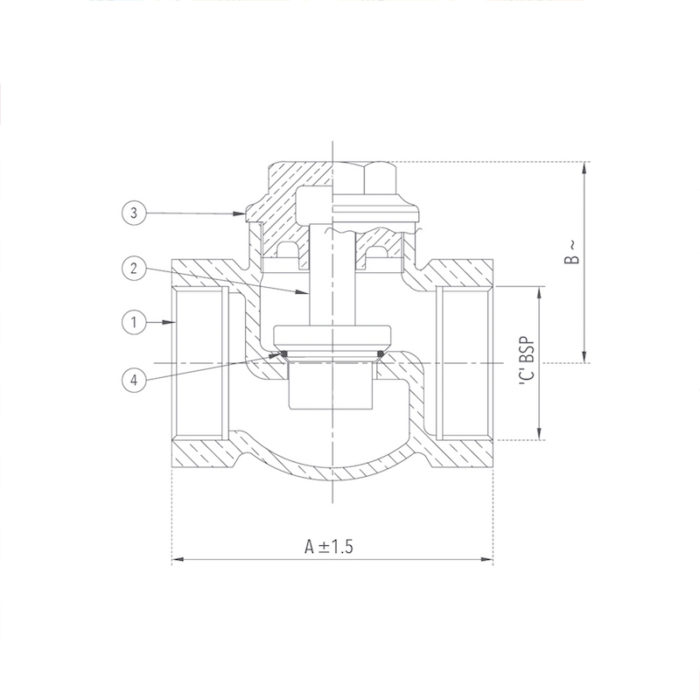

Bronze Horizontal Check Valve (Screwed) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B ~	C
1/4	8	33	24	1/4"
3/8	10	37	28	3/8"
1/2	15	45	32	1/2"
3/4	20	53	37	3/4"
1	25	57	41	1"
1 1/4	32	71	46	1 1/4"
1 1/2	40	79	52	1 1/2"
2	50	86	66	2"
2 1/2*	65*	107	80	2 1/2"
3*	80*	123	94	3"
4*	100*	159	104	4"
