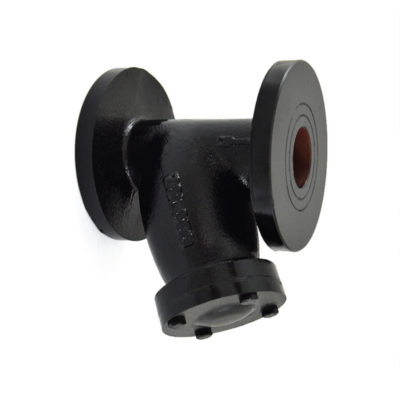

Cast Iron Y-Type Strainer PN 10 (Flanged)

Article Code: 1084

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Flanged Ends to BS 10 Table ‘F’.
Stainless Steel (S.S 304) perforated sheet screen (Ø3 mm Perforation) is guided in body and cover.
Large screening area makes the strainer efficient in performance.
Minimum pressure drop inside the body due to streamlined body contours.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 15 kg/cm²g (220 psig)
Working Pressure (Steam) : 10 kg/cm²g (150 psig)
Maximum Working Temperature : 220^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Body	Cast Iron	IS 210 Gr. FG 200	1
2	Screen (Ø3 mm Perforation)	Stainless Steel	Type 304	1
3	Gasket	Rubber	IS 638 Type B	1
4	Bonnet	Cast Iron	IS 210 Gr. FG 200	1
5	Nuts	Carbon Steel	---	As Reqd.
6	Studs	Carbon Steel	---	As Reqd.

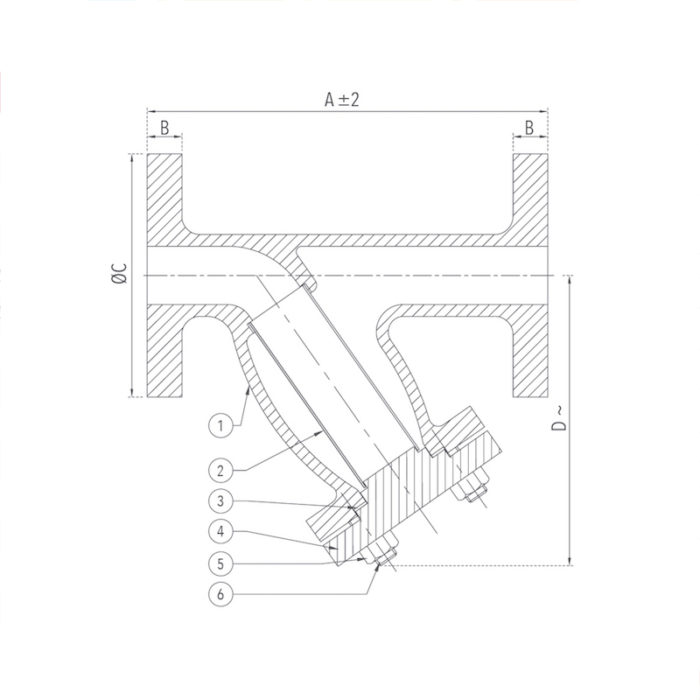

Product GAD

Cast Iron Y-Type Strainer PN 10 (Flanged) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±2	B +3	ØC +3	D ~
1 1/2	40	165	16	140	152
2	50	180	19	165	175
2 1/2	65	206	19	184.5	180
3	80	260	19	203.2	238
4	100	295	22.2	228.6	250
5	125	385	25.4	279.4	320
6	150	385	25.4	305	320
8	200	525	28.6	368.3	395
10	250	700	28.6	431.8	515
12	300	750	31.8	489	570
14	350	850	35	552.5	620
