Cast Steel Y-Type Strainer (Flanged)

Article Code: 1073

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Flanged Ends to BS 10 Table ‘J’.
Stainless Steel (S.S 304) perforated sheet screen (Ø1 mm Perforation) is guided in body and cover.
Drain Plug is provided to remove the accumulated foreign particles.
Fine finish and smooth contours to minimize pressure drop inside the strainer.
Large screening area makes the strainer more efficient.
Suitable for thermic fluid application also.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 49 kg/cm²g (700 psig)
Working Pressure (Steam) : 24.60 kg/cm²g (350 psig)
Maximum Working Temperature : 425^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Body	Cast Steel	IBR 73 – 80 Gr. B	1
2	Screen (Ø1 mm Perforation)	Stainless Steel	Type 304	1
3	Gasket	Steam Jointing Sheet	IS 2712 Gr. W/3	1
4	Bonnet	Cast Steel	IBR 73-80 Gr. B	1
5	Nuts	H.T Steel	ASTM A 194 Gr. 2H	As Reqd
6	Studs	Alloy Steel	ASTM A 193 Gr. B7	As Reqd
7	Gasket	Steam Jointing Sheet	IS 2712 Gr. W/3	1
8	Plug	Bronze	IS 318 Gr. LTB2	1

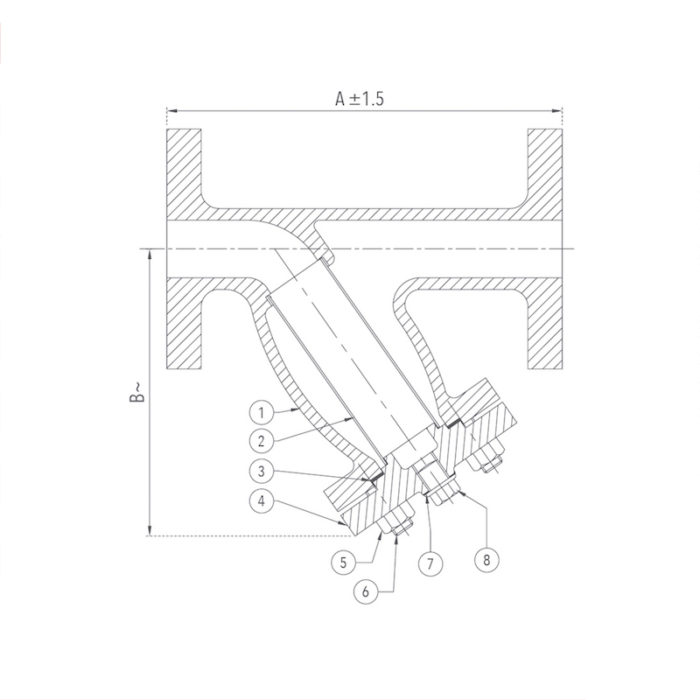

Product GAD

Cast Steel Y-Type Strainer (Flanged) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B ~
1	25	181	135
1 1/4	32	222	170
1 1/2	40	260	200
2	50	276	225
2 1/2	65	286	250
3	80	296	280
4	100	403	312
6	150	476	364
