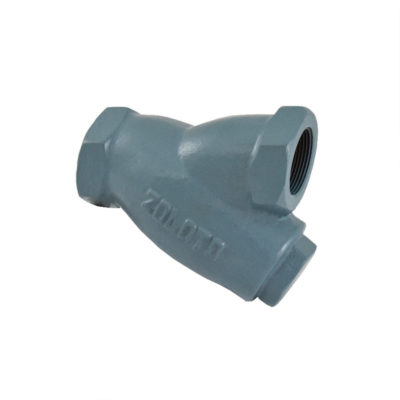

Cast Iron Y-Type Strainer (Screwed)

Article Code: 1069

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Screwed Female Ends to BSPT.
Stainless Steel (S.S 304) Ø1 mm perforated sheet screen is guided in the body and cover.
Fine finish and smooth contours reduce pressure drop in the strainer.
Large screening area makes the strainer efficient in performance.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 21.10 kg/cm²g (300 psig)
Working Pressure (Steam) : 10.55 kg/cm²g (150 psig)
Maximum Working Temperature : 220^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Body	Cast Iron	IBR 86-93 Gr. A	1
2	Screen (Ø1 mm Perforation)	Stainless Steel	Type 304	1
3	Gasket	Steam Jointing Sheet	IS 2712 Gr. W/3	1
4	Cover	Cast Iron	IBR 86-93 Gr. A	1

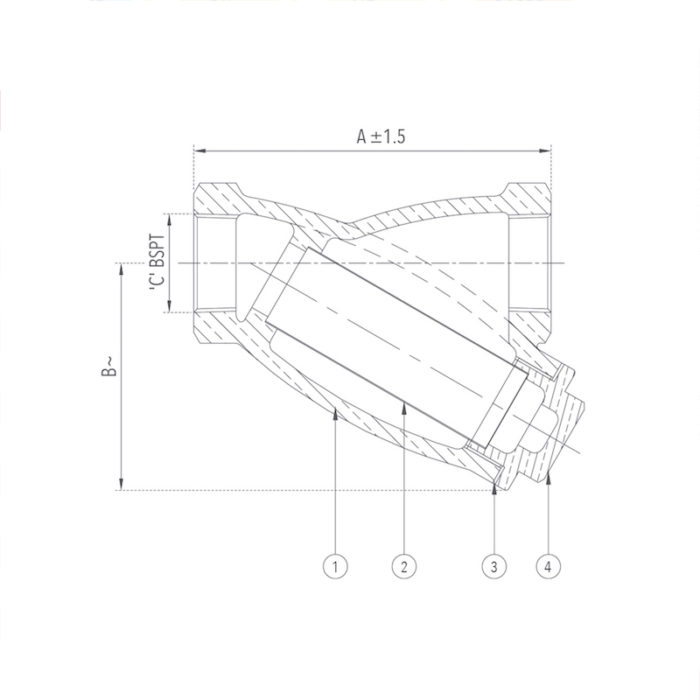

Product GAD

Cast Iron Y-Type Strainer (Screwed) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B ~	C
1/2	15	76	71	1/2"
3/4	20	98	85	3/4"
1	25	133	95	1"
1 1/4	32	155	110	1 1/4"
1 1/2	40	178	116	1 1/2"
2	50	222	140	2"
