Forged Brass Y-Type Strainer (Screwed) PN 25

Article Code: 1053A

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Screwed Female Ends to BSP.
Stainless Steel (S.S 304) Ø1 mm perforated sheet screen is guided in the body and cover.
Fine finish and smooth contours reduce pressure drop in the strainer.
Large screening area makes the strainer efficient in performance.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 35 kg/cm²g (500 psig)
Working Pressure (Steam) : 25 kg/cm²g (350 psig)

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Body	Forged Brass	IS 6912 Gr. FLB	1
2	Screen (Ø1 mm Perforation)	Stainless Steel	Type 304	1
3	Gasket	PTFE	BS EN 12086-1	1
4	Cover	Forged Brass	IS 6912 Gr. FLB	1

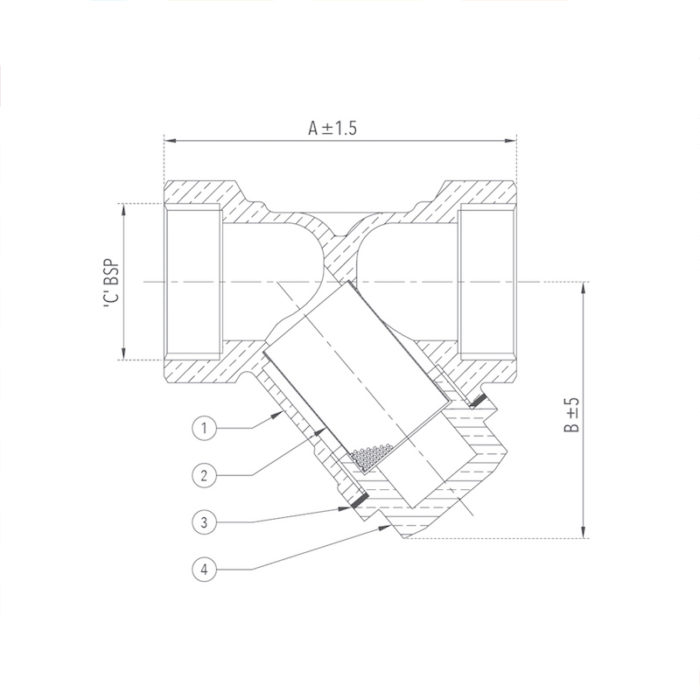

Product GAD

Forged Brass Y-Type Strainer (Screwed) PN 25 Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B ±5	C
1/2	15	54	45	1/2"
3/4	20	67.5	56	3/4"
1	25	75	56	1"
1 1/4	32	94	73	1 1/4"
1 1/2	40	100	80	1 1/2"
2	50	126	99	2"
