Thermodynamic steam trap without integral strainer. Compact, light weight design, in full stainless steel construction.
Better corrosion and wear resistance ensured by the total stainless steel construction. It meets the requirements of quick response applications in the steam system.
426 oC
42 bar(g)
A743 Gr. CA40
End connection: Screwed (NPT/BSPT/BSP), Socket Weld

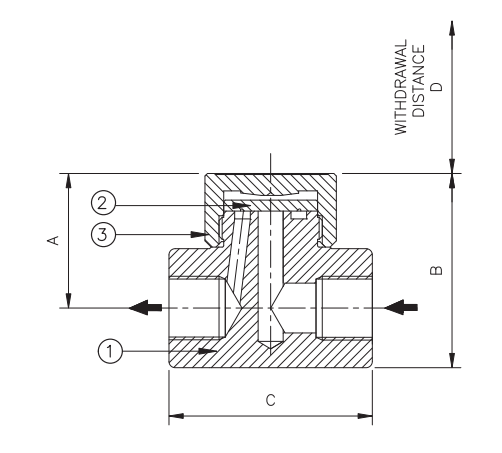

| NO. | PART | MATERIAL | QTY (Nos.) |
|---|---|---|---|
| 1 | BODY (Seat Hardened) | ASTM A743 Gr. CA 40 (Cast Equiv. AISI 420) |
01 |
| 2 | DISC CAP | ASTM A743 Gr. CA 40 (Cast Equiv. AISI 420) |
01 |
| 3 | DISC (Hardened) | AISI 410 | 01 |

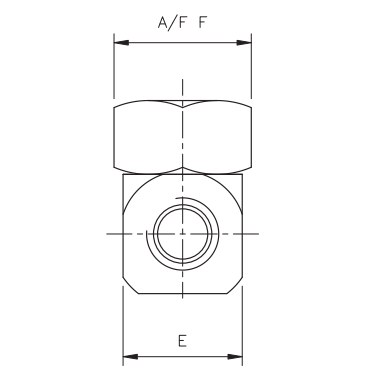

| SIZE | A | B | C | D | E | F | Weight |
|---|---|---|---|---|---|---|---|
| DN8 | 43 | 62 | 60 | 40 | 38 | 42 | 0.65 kg |
| DN10 | 43 | 62 | 60 | 40 | 38 | 42 | 0.65 kg |
| DN15 | 43 | 62 | 65 | 40 | 38 | 42 | 0.75 kg |
| DN20 | 43 | 62 | 65 | 40 | 38 | 42 | 0.75 kg |
| DN25 | 50 | 73 | 85 | 45 | 46 | 50 | 1.60 kg |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
6) End Connections
