Thermodynamic steam trap with full stainless steel internals. Best suited for high pressure line drains with low to medium condensate loads.
Complete stainless steel internals ensure better mechanical & corrosion resistance properties. Condensate entry below the disc, concentric to the disc/seat ensures a clean & parallel lift of the disc with reference to the seat, eliminating localized wear & tear.
538 oC up to 92 bar
258.6 bar(g) @ 38 oC
A182 Gr. F22 CI. 3
End connection: Socket Weld / Flanged

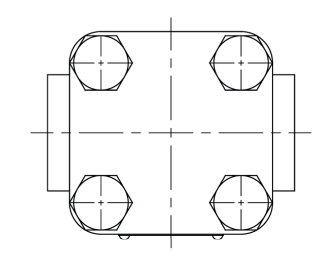

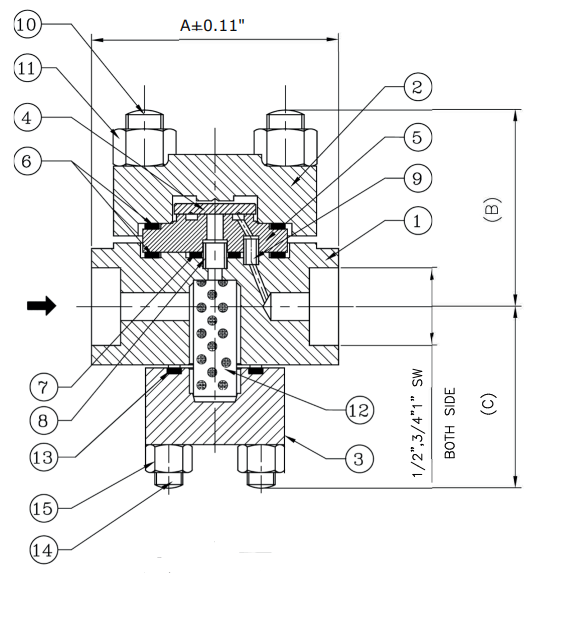

| NO. | PART | MATERIAL | QTY. (Nos.) |
|---|---|---|---|
| 1 | BODY | ASTM A182 Gr. F22 CL3 | 01 |
| 2 | COVER | ASTM A182 Gr. F22 CL3 | 01 |
| 3 | STRAINER COVER | ASTM A182 Gr. F22 CL3 | 01 |
| 4 | DISC | STELLITE6 | 01 |
| 5 | DISC SEAT | ASTM A681 Gr. D2 (HARDENED) | 01 |
| 6 | GASKET-OUTER | SPIRAL WOUND GASKET WITH GRAPHITE | 02 |
| 7 | GASKET-INNER | AISI 304 | 01 |
| 8 | LOCATOR (INLET) | AISI 304 | 01 |
| 9 | TUBE (OUTLET) | AISI 304 | 01 |
| 10 | STUD FOR COVER | ASTM A193 Gr. B16 | 04 |
| 11 | NUT FOR COVER | ASTM A194 Gr. 7 | 04 |
| 12 | STRAINER SCREEN | AISI 304 (40 MESH) | 01 |
| 13 | GASKET (STRAINER COVER) | SPIRAL WOUND GASKET WITH GRAPHITE AISI 304 | 01 |
| 14 | STUD FOR STRAINER COVER | ASTM A193 Gr. B16 | 04 |
| 15 | NUT FOR STRAINER COVER | ASTM A194 Gr. 7 | 04 |
| END CONNS. | SIZE | A | B | C | Wt. |
|---|---|---|---|---|---|
| Socket Weld | DN15, 20, 25 | 106 | 84 | 78 | 7kg |
| Butt Weld | DN15, 20, 25 | 106 | 84 | 78 | 7kg |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
6) End Connections
7) IBR/Non-lBR
