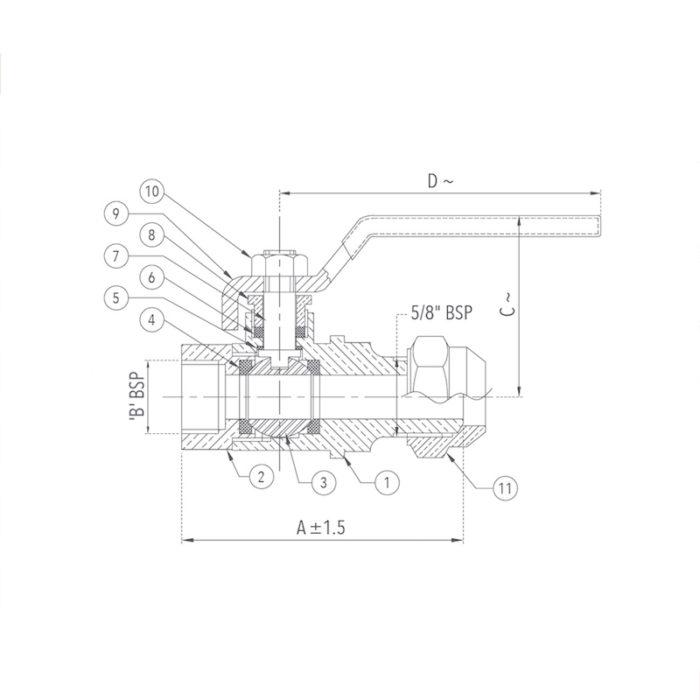

| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Body | Bronze | IS 318 Gr. LTB 2 | 1 |
| 2 | Bonnet | Bronze | IS 318 Gr. LTB 2 | 1 |
| 3 | Ball | Stainless Steel | ASTM A 276 Type 304 | 1 |
| 4 | Body Seat Ring | PTFE | --- | 2 |
| 5 | Thrust Ring | PTFE | --- | 1 |
| 6 | Packing Ring | PTFE | --- | – |
| 7 | Stem | Stainless Steel | Type 304 | 1 |
| 8 | Gland | Brass | IS 6912 Gr. FLB | 1 |
| 9 | Lever | Stainless Steel | Type 304 | 1 |
| 10 | Nut | Carbon Steel | --- | 1 |
| 11 | Flare Nut | Brass | IS 6912 Gr. FLB | 1 |
| Size (Inches) | Size (mm) | A ±1.5 | B | C ~ | D ~ |
|---|---|---|---|---|---|
| 1/2 | 15 | 78 | 1/2" | 52 | 82 |
| 3/4 | 20 | 86 | 3/4" | 52 | 82 |
| 1 | 25 | 88 | 1" | 52 | 82 |
