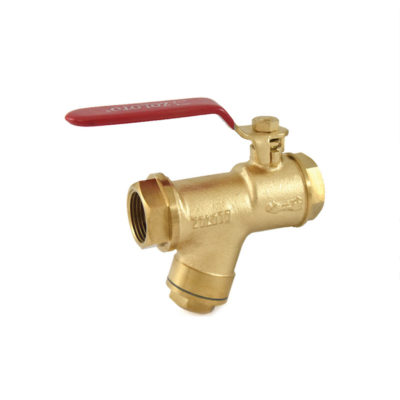

Bronze Ball Valve With Integral Strainer (Screwed)

Article Code: 1085

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Screwed Female Ends to BSP.
Two Piece Design.
Quarter Turn, Lever Operated for convenient operation.
Stainless Steel (S.S 304) rust proof perforated sheet screen is provided in the strainer.
Carbon Steel Powder Coated and Robust Lever.
Most suitable for refrigeration and H.V.A.C applications.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 25 kg/cm²g (350 psig)
Seat : 16 kg/cm²g (225 psig)
Maximum Working Temperature : 220^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Body	Bronze	IS 318 Gr. LTB 2	1
2	Bonnet	Bronze	IS 318 Gr. LTB 2	1
3	Ball	Stainless Steel	ASTM A 276 Type 304	1
4	Body Seat Ring	PTFE	---	2
5	Thrust Washer	PTFE	---	1
6	Packing Ring	PTFE	---	–
7	Stem	Stainless Steel	ASTM A 276 Type 410	1
8	Gland	Brass	IS 6912 Gr. FLB	1
9	Lever	Carbon Steel	---	1
10	Nut	Carbon Steel	---	1
11	Screen	Stainless Steel	Type 304	1
12	Bottom Cover	Bronze	IS 318 Gr. LTB 2	1

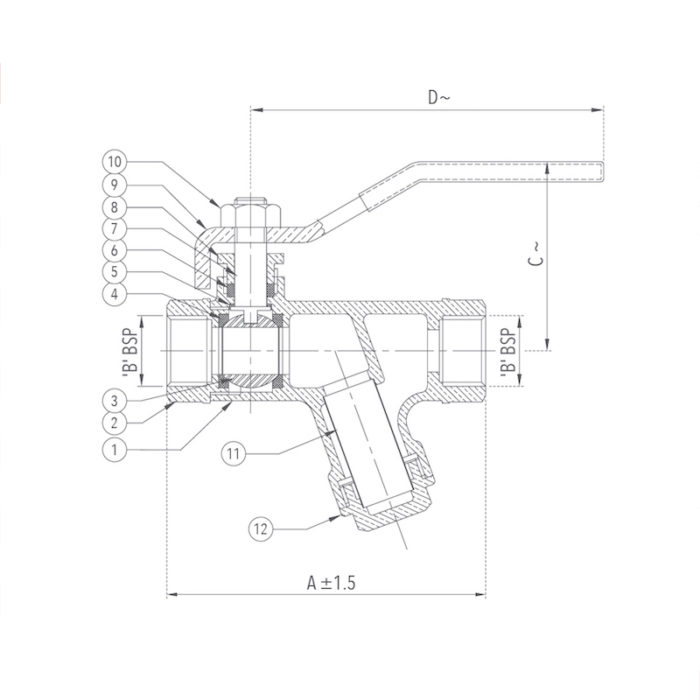

Product GAD

Bronze Ball Valve With Integral Strainer (Screwed) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B	C ~	D ~
1/2	15	92	1/2"	50	104
3/4	20	107	3/4"	60	121
1	25	119	1"	60	136
