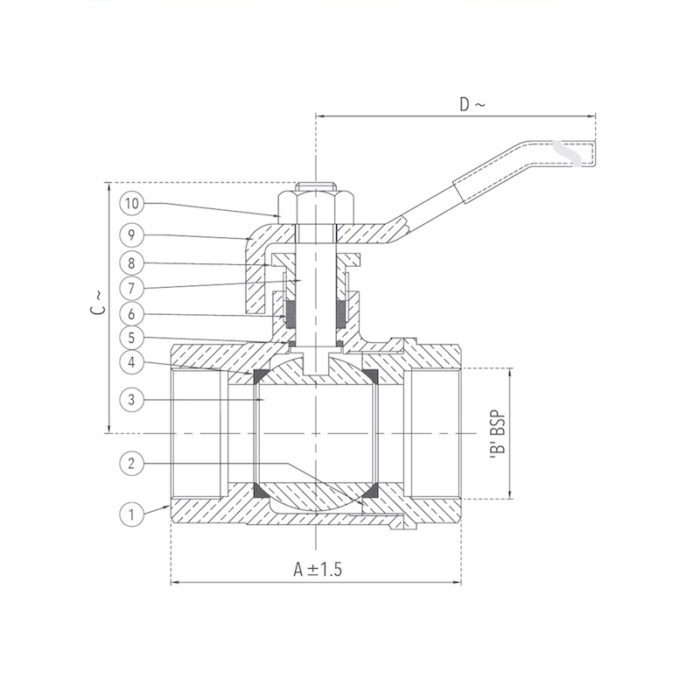

| P.No. | Quantity | Name of Part | Material of Construction | Specification |
|---|---|---|---|---|
| 1 | Body | Bronze | IS 318 GR. LTB 2 | 1 |
| 2 | Bonnet | Bronze / Forged Brass | IS 318 GR. LTB 2 / IS 6912 Gr. FLB | 1 |
| 3 | Ball | Stainless Steel | ASTM A276 Type 304 / ASTM A351 Gr. CF8 | 1 |
| 4 | Body Seat Ring | PTFE | - – - | 2 |
| 5 | Thrust Washer | PTFE | - – - | 1 |
| 6 | Gland Packing | PTFE | - – - | – |
| 7 | Stem | Stainless Steel | ASTM A276 Type 410 | 1 |
| 8 | Gland | Forged Brass | IS 6912 Gr. FLB | 1 |
| 9 | Lever | Mild Steel | – – – | 1 |
| 10 | Nut | Carbon Steel | – – – | 1 |
| Size (Inches) | Size (mm) | A ±1.5 | B | C ~ | D ~ |
|---|---|---|---|---|---|
| 1/2 | 15 | 60 | 1/2" | 44 | 105 |
| 3/4 | 20 | 65 | 3/4" | 48 | 123 |
| 1 | 25 | 73 | 1" | 58 | 123 |
| 1 1/4 | 32 | 91 | 1 1/4" | 73 | 148 |
| 1 1/2 | 40 | 91 | 1 1/2" | 80 | 178 |
| 2 | 50 | 117 | 2" | 85 | 213 |
| 2 1/2 | 65 | 135 | 2 1/2" | 110 | 245 |
| 3 | 80 | 162 | 3" | 116 | 330 |
| 4 | 100 | 201 | 4" | 139 | 330 |
