Bronze Ball Valve With Integral Strainer & Flare Nut (Mixed Ends)

Article Code: 1085A

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Screwed Ends to BSP Female Inlet and 5/8″ BSP Male Outlet provided with a Flare Nut.
Two Piece Design.
Quarter Turn, Lever Operated for convenient operation.
Stainless Steel (S.S 304) rust proof perforated sheet screen is provided in the strainer.
Stainless Steel, Rust Free and Robust Lever.
Most suitable for refrigeration and H.V.A.C applications.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 20 kg/cm²g (300 psig)
Seat : 13.50 kg/cm²g (192 psig)
Maximum Working Temperature : 220^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Body	Bronze	IS 318 Gr. LTB 2	1
2	Bonnet	Bronze	IS 318 Gr. LTB 2	1
3	Ball	Stainless Steel	ASTM A 276 Type 304	1
4	Body Seat Ring	PTFE	– – –	2
5	Thrust Washer	PTFE	– – –	1
6	Packing Ring	PTFE	– – –	–
7	Stem	Stainless Steel	ASTM A 276 Type 410	1
8	Gland	Brass	IS 6912 Gr. FLB	1
9	Lever	Stainless Steel	Type 304	1
10	Nut	Carbon Steel	– – –	1
11	Screen	Stainless Steel	Type 304	1
12	Bottom Cover	Bronze	IS 318 Gr. LTB 2	1
13	Flare Nut	Brass	IS 6912 Gr. FLB	1

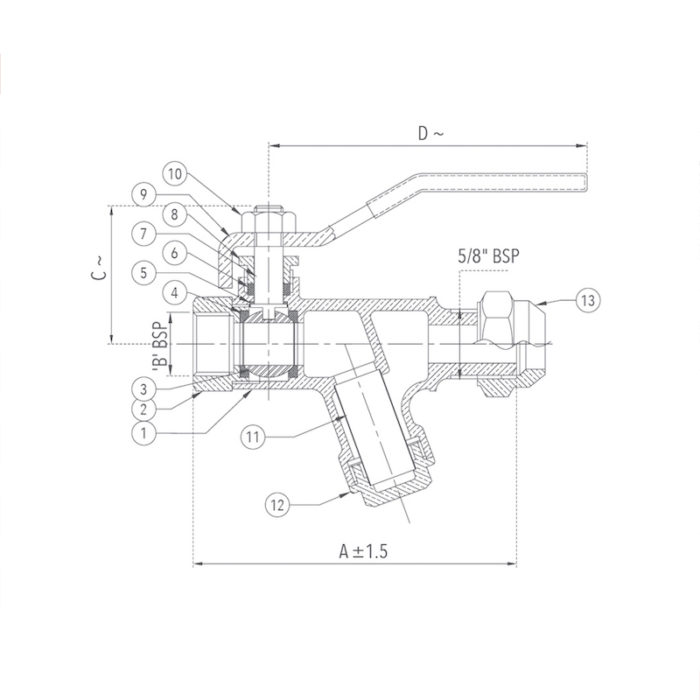

Product GAD

Bronze Ball Valve With Integral Strainer & Flare Nut (Mixed Ends) Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B	C ~	D ~
1/2	15	87	1/2"	34	82
3/4	20	114	3/4"	36	82
1	25	126	1"	44	82
