Cast Iron Globe Steam Stop Valve (Angle Pattern) (Flanged)

Article Code: 1066

Steam

Water

Oil

Air

Gases

Flanged Ends to DIN 2533 PN 16RF.
Straight Pattern, Screwed in Bonnet, Inside Screw, Rising Stem.
Provision for re-packing under pressure.
Renewable 13% Cr. Stainless Steel (S.S 410) working parts.
Minimum pressure drop inside the body due to streamlined body design.
High lift of the seat to avoid any obstruction in the flow.
Sturdy and comparatively bigger sized wheel provided to give sufficient torque for easy operation.

Available Sizes

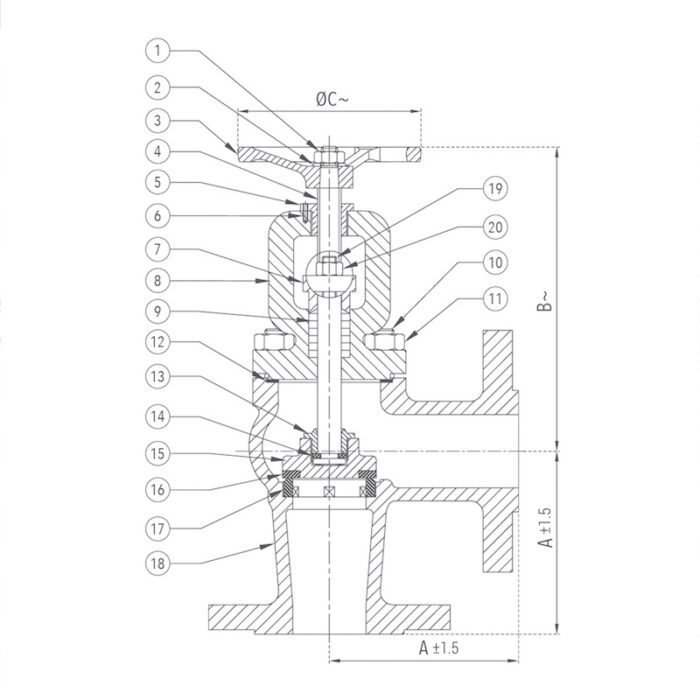

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Nut	Carbon Steel	– – –	1
2	Washer	Carbon Steel	– – –	1
3	Handwheel	Cast Iron	IS 210 Gr. FG 200	1
4	Stem	Stainless Steel	ASTM 276 Type 410	1
5	Yoke Bush	Bronze	IS 318 Gr. LTB 2	1
6	Locking Screw	Carbon Steel	– – –	1
7	Gland Flange	Cast Iron	IBR 86-93 Gr. A	1
8	Bonnet	Cast Iron	IBR 86-93 Gr. A	1
9	Gland Packing	Braided Graphited Asbestos	IS 4687	–
10	Studs	Carbon Steel	IS 1367	As Reqd.
11	Nuts	Carbon Steel	IS 1367	As Reqd.
12	Gasket	Steam Jointing Sheet	IS 2712 Gr. W/3	1
13	Stem Nut	Stainless Steel	ASTM A 276 Type 410	1
14	Stem Ring	Stainless Steel	ASTM A 276 Type 410	1
15	Disc	Cast Iron	IBR 86-93 Gr. A	1
16	Seat Ring	Stainless Steel	ASTM A 276 Type 410 / ASTM A 182 Gr. F6a	1
17	Body Seat Ring	Stainless Steel	ASTM A 276 Type 410 / ASTM A 182 Gr. F6a	1
18	Body	Cast Iron	IBR 86-93 Gr. A	1
19	Nuts	Carbon Steel	IS 1367	2
20	Bolts	Carbon Steel	IS 1367	2

Size (Inches)	Size (mm)	A ±1.5	B ~	ØC ~
1/2	15	90	150	96
3/4	20	95	154	96
1	25	100	162	118
1 1/4	32	105	176	118
1 1/2	40	115	204	150
2	50	125	223	150
2 1/2	65	145	250	180
3	80	155	275	200
4	100	175	305	235
6	150	225	419	350
8	200	275	475	435
