Investment Casting CF8M 3PC Flanged Ends Full Bore Ball Valve A.S.A 150

Ball Valves

DESCRIPTION:

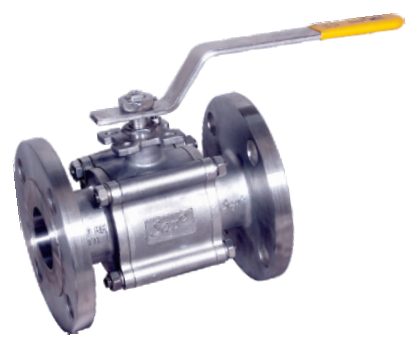

The CF8M Stainless Steel 3PC Ball Valve is built for high-performance operation in A.S.A 150 rated pipelines. Its full bore design allows for uninterrupted fluid flow, reducing energy losses and maintaining system efficiency. The CF8M material offers excellent corrosion and temperature resistance.

Featuring a three-piece construction, the valve can be easily serviced or maintained without removing it from the pipeline. It is widely used in chemical processing, water treatment, and petrochemical industries where reliability, precision, and longevity are required.

Detailed Specifications

Body:ASTM A 351 Gr. CF8M
Ball:ASTM A 351 Gr. CF8M
Stem:AISI 316
Seat & Seal:P.T.F.E.
Mfg. Std.:BS 5351/API6D
Insp. & Test.:BS 6755/API598
Lever:SS WITH PVC SLEEVE
Ends:FLANGED TO ANSI B16.5RF (150#)
Hyd.Test Pressure: BODY : 425 Psig (30 Kg/Cm²)
SEAT : 300 Psig (21 Kg/Cm²)
Size Range:15 MM TO 200 MM
