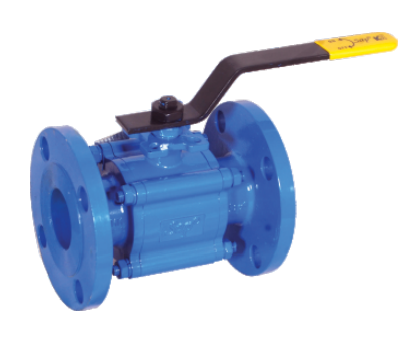

Cast Steel 3PC Flanged Ends Full Bore Ball Valve A.S.A 150

Ball Valves

DESCRIPTION:

A durable Cast Steel 3PC Full Bore Ball Valve with flanged ends designed for A.S.A 150 pressure systems. Its three-piece design allows easy maintenance, while the full bore construction ensures minimal pressure drop and smooth fluid flow. Ideal for industrial applications including oil, gas, and chemical pipelines.

Its three-piece (3PC) construction allows for easy maintenance and servicing without removing the entire valve from the pipeline. Ideal for applications in oil, gas, chemical, and water treatment industries, this valve provides secure flanged connections and precise flow control, making it a dependable choice for demanding environments.

Detailed Specifications

Body:ASTM A 216 Gr. WCB
Ball:SS
Stem:SS
Seat & Seal:P.T.F.E.
Mfg. Std.:BS 5351
Insp. & Test.:BS 6755
Lever:CARBON STEEL WITH PVC SLEEVE
Ends:FLANGED TO ANSI B 16.5 RF 150#
Hyd.Test Pressure: BODY : 425 Psig (30 Kg/Cm²)
SEAT : 300 Psig (21 Kg/Cm²)
Size Range:15 MM TO 350 MM
