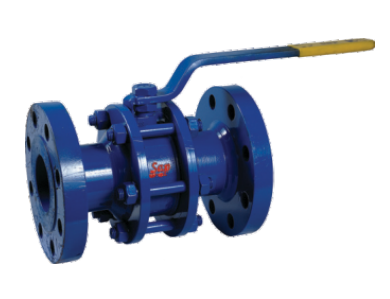

Cast Steel 3PC Flange Ends Full Bore Ball Valve A.S.A 300

Ball Valves

DESCRIPTION:

The Cast Steel 3PC Full Bore Ball Valve is designed for high-pressure A.S.A 300 applications. Its robust cast steel construction ensures durability under extreme conditions, while the full bore design provides efficient flow and minimal pressure drop in industrial systems.

The three-piece design allows quick and convenient maintenance, reducing downtime and operational costs. This valve is suitable for demanding applications in oil, gas, petrochemical, and water systems, offering reliable performance and secure flanged connections.

Detailed Specifications

Body:ASTM A 216 Gr. WCB
Ball:SS
Stem:SS
Seat & Seal:P.T.F.E.
Mfg. Std.:BS 5351/API6D
Insp. & Test.:BS 6755/API598
Lever:CARBON STEEL WITH PVC SLEEVE
Ends:FLANGED TO ANSI B 16.5 RF 300#
Hyd.Test Pressure: BODY : 1100 Psig (77 Kg/Cm²)
SEAT : 825 Psig (57 Kg/Cm²)
Size Range:15 MM TO 200 MM
