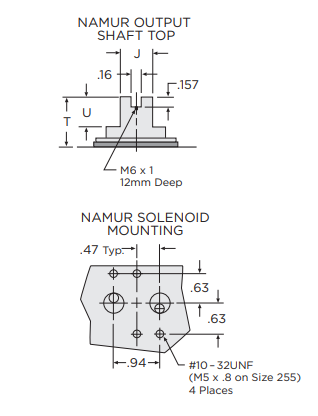

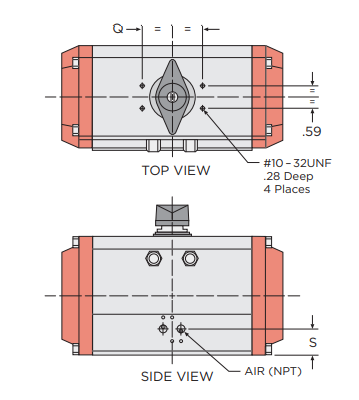

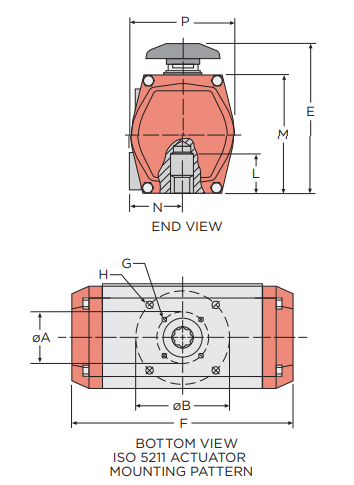

Bray proudly offers the Flow-Tek Series 92/93 rack & pinion, opposed-piston pneumatic actuator, designed to incorporate innovative, high performance features into a compact, rugged, and reliable modular product line. These space-saving, modular units are self-contained with integral internal porting that reduces the cost of easily damaged external tubing. Units are suitable for both on/off and throttling applications.
| Size Air |
48 1/8 |
63 1/4 |
83 1/4 |
93 1/4 |
119 1/4 |
128 1/4 |
160* 1/4 |
210 1/4 |
255B 1/4 |
|---|---|---|---|---|---|---|---|---|---|
| A | 1.42 F03 |
1.97 F05 |
1.97 F05 |
1.97 F05 |
2.76 F07 |
2.76 F07 |
— | 4.92 F12 |
6.50 F16 |
| B | 1.97 F05 |
2.76 F07 |
2.76 F07 |
2.76 F07 |
4.92 F12 |
4.92 F12 |
4.92 F12 |
6.50 F16 |
7.87x4.72 Rect |
| C | .71 | .71 | .87 | .87 | 1.42 | 1.42 | 1.42 | 2.37 | 2.84 |
| D | .55 | .55 | .67 | .67 | 1.06 | 1.06 | 1.06 | 1.81 | 2.17 |
| E | 3.88 | 4.53 | 5.43 | 5.78 | 7.28 | 8.09 | 9.36 | 11.45 | 13.35 |
| F | 4.00 | 5.58 | 7.40 | 9.10 | 12.40 | 12.81 | 15.54 | 19.48 | 26.75 |
| G | 10-32 x .32 |
1/4-20 x .32 |
1/4-20 x .32 |
1/4-20 x .32 |
5/16-18 x .46 |
5/16-18 x .46 |
— | M12x1.75 x 19mm |
M20x2.5 x 30mm |
| H | 1/4-20 x .25 |
5/16-18 x .40 |
5/16-18 x .40 |
5/16-18 x .40 |
1/2-13 x .75 |
1/2-13 x .75 |
5/8-11 x 1.11 |
M20x2.5 x 30mm |
M20x2.5 x 30mm |
| J | .38 | .38 | .50 | .50 | 1.12 | 1.12 | 1.12 | 1.12 | 1.12 |
| K | .58 | .63 | .75 | 1.18 | 1.59 | 1.59 | 2.61 | 2.61 | 2.61 |
| L | 2.50 | 3.46 | 4.27 | 4.61 | 6.61 | 6.88 | 7.80 | 11.65 | 11.89 |
| M | 1.63 | 2.02 | 2.47 | 2.78 | 2.88 | 3.07 | 3.07 | 3.81 | 4.75 |
| N | 2.78 | 3.11 | 3.83 | 4.44 | 5.15 | 5.88 | 6.82 | 8.85 | 10.75 |
| P | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 5.12 | 5.12 | 5.12 |
| Q | 1.10* | .79 | .79 | .79 | .79 | .79 | 1.18 | 1.18 | 1.18 |
| S | .47 | .47 | .47 | .47 | .47 | .47 | .75 | .75 | .75 |
| U | .47 | .47 | .47 | .47 | .47 | .47 | .75 | .75 | .75 |
