Inverted bucket steam trap with integral strainer and all stainless steel internals. Best suited for equipment drains with medium to heavy condensate loads. Intermittent operation.
The inverted bucket arrangement operates on the density difference between steam and water, giving a cyclic operation for discharge of the accumulated condensate. High condensate handling capacities even at low pressure, permit the use of small trap sizes to suit many applications.
220 oC
16 bar(g)
CAST IRON
End connection: Screwed NPT / BSPT / BSP

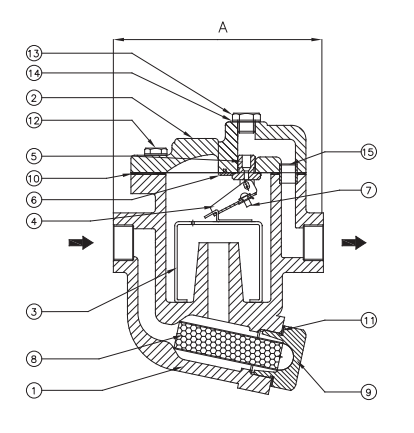

| NO. | PART | MATERIAL | QTY. |
|---|---|---|---|
| 1 | BODY | CAST IRON | 01 |
| 2 | COVER | CAST IRON | 01 |
| 3 | BUCKET ASSLY. | AISI 304 WITH CS REINFORCING RING WHERE APPLICABLE | 01 |
| 4 | LEVER ASSLY. | AISI 304 | 01 |
| 5 | VALVE SEAT (HARDENED) | AISI 410/420 | 01 |
| 6 | BRACKET | AISI 304 | 01 |
| 7 | VALVE PIN (HARDENED) | AISI 410/420 | 01 |
| 8 | STRAINER SCREEN | AISI 304 (Perforated Sheet 0.8) | 01 |
| 9 | STRAINER CAP | ASTM A743 Gr CA40 | 01 |
| 10 | GASKET (COVER) | NON CAF | 01 |
| 11 | GASKET (STRAINER) | NON CAF | 01 |
| 12 | BOLT | HIGH TENSILE | 06 |
| 13 | PLUG | CARBON STEEL | 01 |
| 14 | GASKET (PLUG) | COPPER | 01 |
| 15 | LOCATING TUBE | AISI 304 | 01 |
| MODEL | SIZE | A | B | C | D | Wt. |
|---|---|---|---|---|---|---|
| PT23 | DN15 | 120 | 100 | 156 | 71 | 3.20 kg |
| DN20 | 120 | 100 | 201 | 93 | 3.8 kg | |
| DN25 | 180 | 160 | 255 | 137 | 9.2 kg |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
6) End Connections
