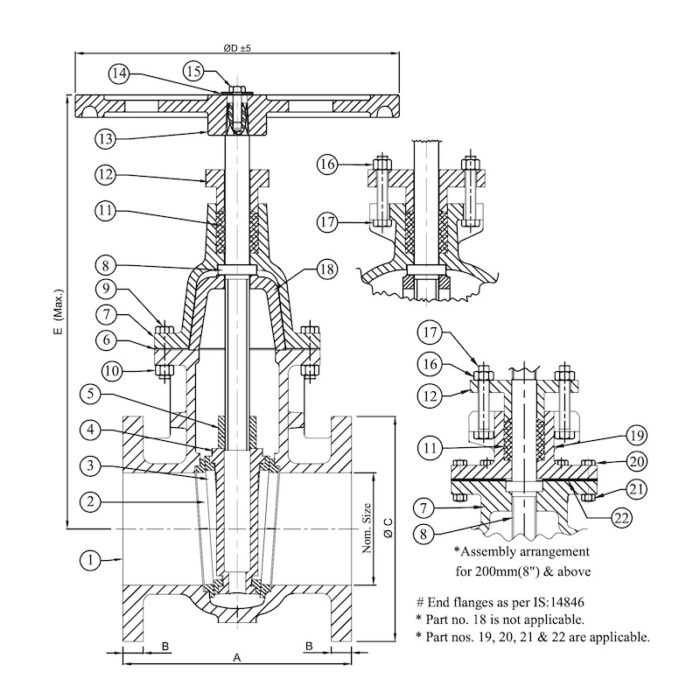

| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 2 | Body Seat Ring | Bronze | IS 318 Gr. LTB 2 | 2 |
| 3 | Wedge Ring | Bronze | IS 318 Gr. LTB 2 | 2 |
| 4 | Wedge | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 5 | Stem Bush | Bronze | IS 318 Gr. LTB 2 | 1 |
| 6 | Gasket | Rubber | IS 638 Type B | 1 |
| 7 | Bonnet | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 8 | Stem | Stainless Steel | IS 6603 Gr. 12 Cr. 12 | 1 |
| 9 | Bolts | Carbon Steel | IS 1363 Part 1 Class 4.6 | To Suit |
| 10 | Nuts | Carbon Steel | IS 1363 Part 3 Class 4.0 | To Suit |
| 11 | Gland Packing | Hemp & Jute | IS 5414 | – |
| 12 | Gland Flange | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 13 | Handwheel | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 14 | Washer | Carbon Steel | – – – | 1 |
| 15 | Bolt | Carbon Steel | IS 1363 Part 1 Class 4.6 | 1 |
| 16 | Nuts | Carbon Steel | IS 1363 Part 3 Class 4.0 | 2 |
| 17 | Bolts | Carbon Steel | IS 1363 Part 1 Class 4.6 | 2 |
| 18 | Thrust Plate | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 19 | Stuffing Box | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 20 | Bolts | Carbon Steel | IS 1363 Part 1 Class 4.6 | To Suit |
| 21 | Nuts | Carbon Steel | IS 1363 Part 3 Class 4.0 | To Suit |
| 22 | Gasket | Rubber | IS 638 Type B | 1 |
| Size (Inches) | Size (mm) | A | B | ØC | ØD ±5 | E (Max.) |
|---|---|---|---|---|---|---|
| 2 | 50 | 178 ±2 | 16 ±2 | 165 (+1.5/-1.0) | 280 | 365 |
| 2 1/2 | 65 | 190 ±2 | 16 ±2 | 185 (+1.5/-1.0) | 280 | 380 |
| 3 | 80 | 203 ±2 | 21 ±3 | 200 ±4.5 | 280 | 425 |
| 4 | 100 | 229 ±2 | 22 ±3 | 220 ±4.5 | 360 | 470 |
| 5 | 125 | 254 ±2 | 22.5 ±3 | 250 ±4.5 | 360 | 485 |
| 6 | 150 | 267 ±2 | 23 ±3 | 285 (+5.5/-2.5) | 360 | 595 |
| 8 | 200 | 292 ±3 | 24.5 ±3 | 340 (+5.5/-2.5) | 450 | 725 |
| 10 | 250 | 330 ±3 | 26 ±3 | 395 (+5.5/-2.5) | 640 | 835 |
| 12 | 300 | 356 ±3 | 27.5 ±3 | 445 (+5.5/-2.5) | 640 | 910 |
