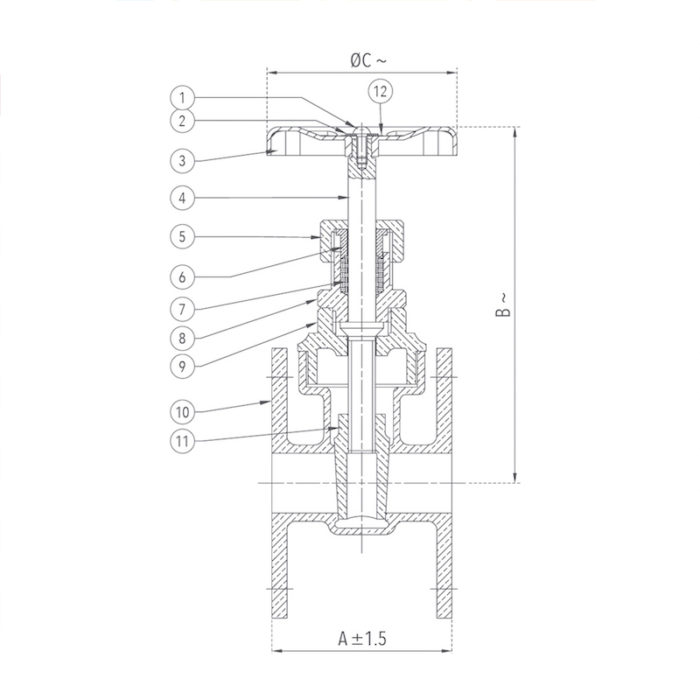

| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Screw / Bolt | Carbon Steel (Zinc Plated) | – – – | 1 |
| 2 | Washer | Carbon Steel (Zinc Plated) | – – – | 1 |
| 3 | Handwheel | Sheet Metal (Power Coated Paint) | – – – | 1 |
| 4 | Stem | Forged Brass | IS 6912 Gr. FLB | 1 |
| 5 | Gland Nut | Forged Brass | IS 6912 Gr. FLB | 1 |
| 6 | Gland | Forged Brass | IS 6912 Gr. FLB | 1 |
| 7 | Gland Packing | PTFE | – – – | – |
| 8 | Stuffing Box | Forged Brass | IS 6912 Gr. FLB | 1 |
| 9 | Bonnet | Forged Brass | IS 6912 Gr. FLB | 1 |
| 10 | Body | Bronze | IS 318 Gr. LTB 2 | 1 |
| 11 | Wedge | Bronze | IS 318 Gr. LTB 2 | 1 |
| 12 | Name Plate | Aluminium | – – – | 1 |
| Size (Inches) | Size (mm) | A ±1.5 | B ~ | ØC ~ |
|---|---|---|---|---|
| 1/2 | 15 | 72 | 105 | 60 |
| 3/4 | 20 | 76 | 117 | 65 |
| 1 | 25 | 90 | 132 | 70 |
| 1 1/4 | 32 | 100 | 140 | 80 |
| 1 1/2 | 40 | 110 | 172 | 90 |
| 2 | 50 | 120 | 190 | 110 |
| 2 1/2 | 65 | 140 | 214 | 115 |
| 3 | 80 | 150 | 268 | 140 |
| 4 | 100 | 190 | 323 | 160 |
