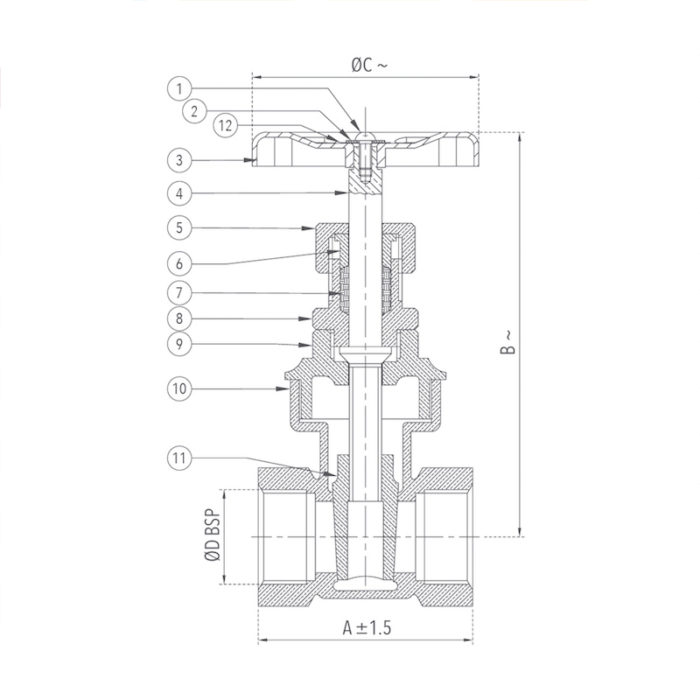

| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Screw / Bolt | Carbon Steel (Zinc Plated) | — — — | 1 |
| 2 | Washer | Carbon Steel (Zinc Plated) | — — — | 1 |
| 3 | Handwheel | Sheet Metal (Power Coated) | — — — | 1 |
| 4 | Stem | Forged Brass | IS 6912 Gr. FLB | 1 |
| 5 | Gland Nut | Forged Brass | IS 6912 Gr. FLB | 1 |
| 6 | Gland | Forged Brass | IS 6912 Gr. FLB | 1 |
| 7 | Gland Packing | PTFE | — — — | – |
| 8 | Stuffing Box | Forged Brass | IS 6912 Gr. FLB | 1 |
| 9 | Bonnet | Forged Brass | IS 6912 Gr. FLB | 1 |
| 10 | Body | Bronze | IS 318 Gr. LTB 2 | 1 |
| 11 | Wedge | Bronze | IS 318 Gr. LTB 2 | 1 |
| 12 | Name Plate | Aluminium | — — — | 1 |
| Size (Inches) | Size (mm) | A ±1.5 | B ~ | ØC ~ | D |
|---|---|---|---|---|---|
| 1/4 | 8 | 50 | 84 | 50 | 1/4" |
| 3/8 | 10 | 50 | 89 | 50 | 3/8" |
| 1/2 | 15 | 60 | 105 | 60 | 1/2" |
| 3/4 | 20 | 60 | 117 | 65 | 3/4" |
| 1 | 25 | 70 | 132 | 70 | 1" |
| 1 1/4 | 32 | 80 | 150 | 80 | 1 1/4" |
| 1 1/2 | 40 | 90 | 165 | 90 | 1 1/2" |
| 2 | 50 | 100 | 190 | 110 | 2" |
| 2 1/2 | 65 | 105 | 232 | 115 | 2 1/2" |
| 3 | 80 | 125 | 268 | 140 | 3" |
| 4 | 100 | 160 | 332 | 160 | 4" |
