Universal connector (with and without strainer) for use with steam traps. Facilitates quick replacement of traps reducing maintenance costs.

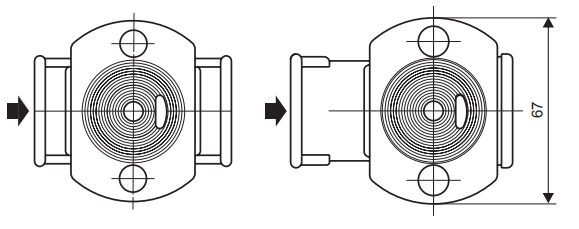

The universal connector, once installed, remains in the pipeline permanently. The trap itself is attached to the connector by two bolts, enabling quick installation and replacement.
426 oC
42 bar(g)
A351 Gr. CF8
End connection: Screwed NPT / BSPT / BSP / SW

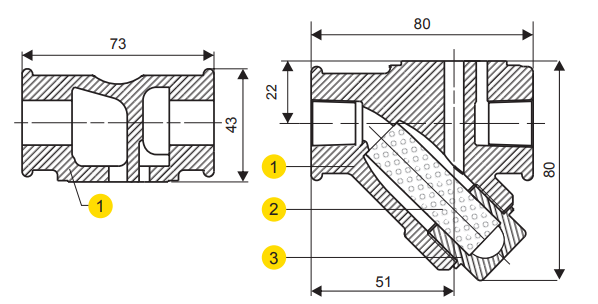

| No. | PART | MATERIAL | QTY. (Nos.) |
|---|---|---|---|
| 1. | CONNECTOR BODY | ASTM A351 Gr. CF8 | 01 |
| 2. | STRAINER SCREEN | AISI 304 (Perforated Sheet 0.8) |
01 |
| 3. | STRAINER CAP | ASTM A743 Gr. CA40 (Cast Equiv. AISI 420) |
01 |
| MODEL | SCREWED/ SW ENDS |
|---|---|
| PU11 | 0.550 |
| PU11Y | 1.025 |
1) Inlet Pressure in bar(g)
2) Operating Temperature in oC
3) Size & Model
4) End Connections
