PC31 is a stainless steel inline single disc non slam check valves for general purpose applications. These valves are compact & lighter than the conventional swing check valves. These can be easily fitted in the pipeline.
Can be easily mounted in any plane & direction. Can operate under extremely low opening pressure. Tested to API 598. Occupies less space due to its compact design
End connection: Wafer type – for fitment between flanges

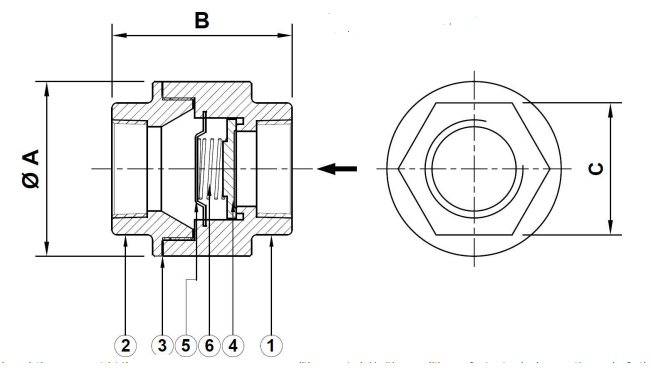

| No. | PART | MATERIAL | QTY. |
|---|---|---|---|
| 1 | BODY | ASTM A351 GR. CF8M | 01 |
| 2 | COVER | ASTM A351 GR. CF8M | 01 |
| 3 | COVER GASKET | GRAPHITE | 01 |
| 4 | DISC | AISI 316 | 01 |
| 5 | CLIP | AISI 316 | 01 |
| 6 | SPRING | AISI 316 | 01 |
| SIZE | A | B | C | WEIGHT (kg) |
|---|---|---|---|---|
| DN15 | 44.0 | 58.0 | 36.0 | 0.45 |
| DN20 | 56.0 | 62.0 | 42.0 | 0.65 |
| DN25 | 62.0 | 70.5 | 50.0 | 0.90 |
| DN32 | 80.0 | 85.5 | 65.0 | 1.83 |
| DN40 | 86.0 | 89.5 | 65.0 | 1.90 |
| DN50 | 101.0 | 101.5 | 80.0 | 2.80 |
