The PT30 is a perfect NO-LOSS steam trap that offers condensate sub-cooling to maximise thermal efficiency. Its special design facilitates fitment in any position. The highly responsive, corrosion and water-hammer resistant controller gives excellent deaeration and drainage.
220 oC
22 bar(g)
A105
End connection: Screwed NPT / BSPT / BSP / Socket Weld / Flanged

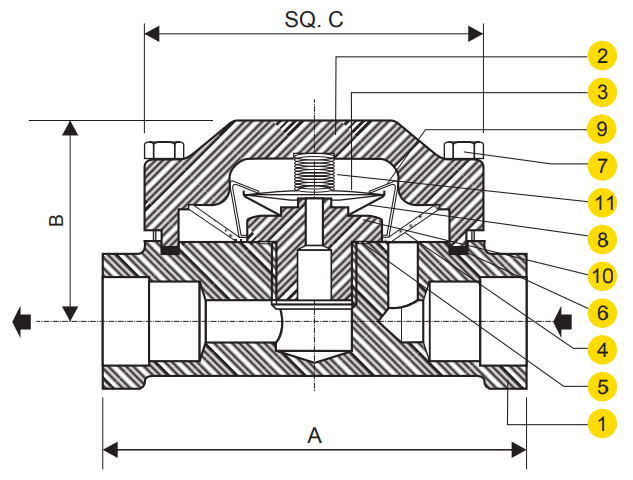

| NO. | PART | MATERIAL | QTY. |
|---|---|---|---|
| 1. | BODY | ASTM A105 | 01 |
| 2. | COVER | ASTM A105 | 01 |
| 3. | CONTROLLER ASSLY. | STAINLESS STEEL | 01 |
| 4. | STRAINER SCREEN | AISI 304 (Perforated Sheet) | 01 |
| 5. | SEAT GASKET | COPPER | 01 |
| 6. | COVER GASKET | Non CAF | 01 |
| 7. | BOLT | ASTM A193 Gr. B7 | 04 |
| 8. | BURBLE SHEET | AISI 304 | 01 |
| 9. | CLIP | AISI 304 | 01 |
| 10. | SEAT | AISI 304 | 01 |
| 11. | SPRING | STAINLESS STEEL | 01 |

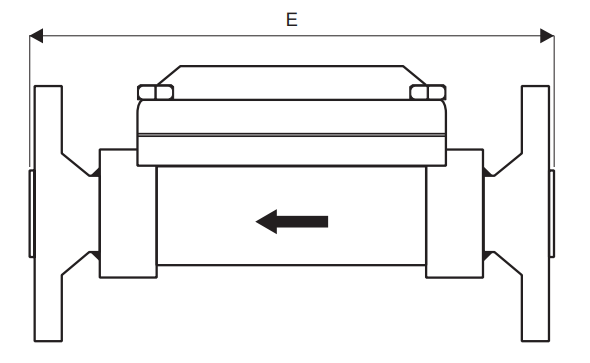

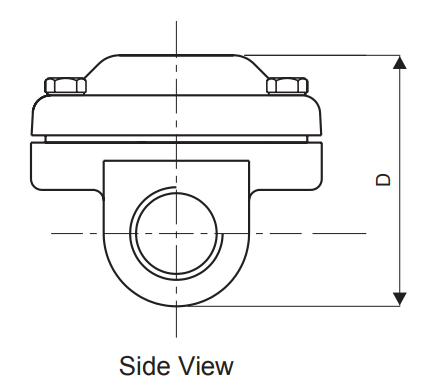

| SIZE | A | B | C | D | E | |
|---|---|---|---|---|---|---|
| #150 | #300 | |||||
| DN15 | 100 | 50 | 80 | 70 | 177 | 185 |
| DN20 | 100 | 50 | 80 | 70 | 180 | 190 |
| SIZE | SCR/SW | FLANGED | |
|---|---|---|---|
| #150 | #300 | ||
| DN15 | 1.9 kg | 3.2 kg | 3.5 kg |
| DN20 | 1.9 kg | 3.6 kg | 4.4 kg |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
6) End Connections
7) Sub Cooling (oC)
8) IBR/NIBR
