Pennant compact module is a complete unit in itself. It is a forged steel module comprising upstream & downstream isolation valves, a universal connection for fitting a steam trap, Vent Valve on the upstream side of the steam trap and a steam trap test valve on the downstream side.
426 oC
42 bar(g)
A105
End connection: screwed (NPT / BSPT / BSP), SW

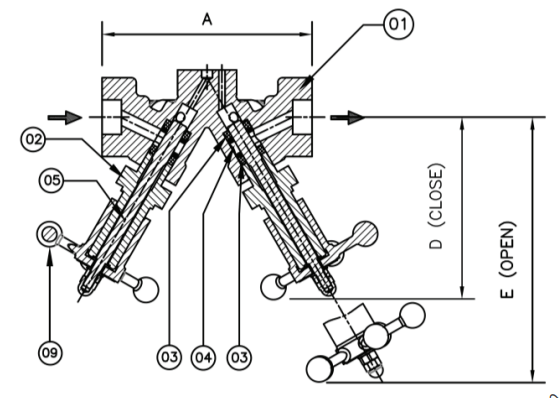

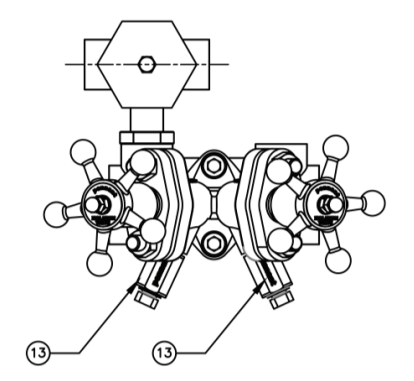

| No. | PART | MATERIAL | QTY. (Nos.) |
|---|---|---|---|
| 1. | BODY | ASTM A105 | 1 |
| 2. | BONNET | ASTM A105 | 2 |
| 3. | SEALING RING | GRAPHITE WITH AISI 304 REINFORCED | 6 |
| 4. | LANTERN BUSH | AISI 304 | 3 |
| 5. | PISTON | AISI 304 | 2 |
| 6. | STUDS | ASTM A193 Gr. B7 | 4 |
| 7. | BELLEVILLE WASHERS | 50CrV4 | 8 |
| 8. | NUTS | ASTM A194 Gr. 2H | 4 |
| 9. | HANDWHEEL | ASTM 216 Gr. WCB | 1 |
| 10. | PLAIN WASHERS | MILD STEEL | 5 |
| 11. | LABEL | AISI 304 | 2 |
| 12. | NUTS | ASTM A194 Gr. 2H | 3 |
| 13. | TEST/VENT VALVE | ASTM A351 Gr. CF8 | 2 |
| 14. | BYPASS VALVE | ASTM A351 Gr. CF8 | 1 |
| 15. | LOCKNUT | AISI 304 | 1 |

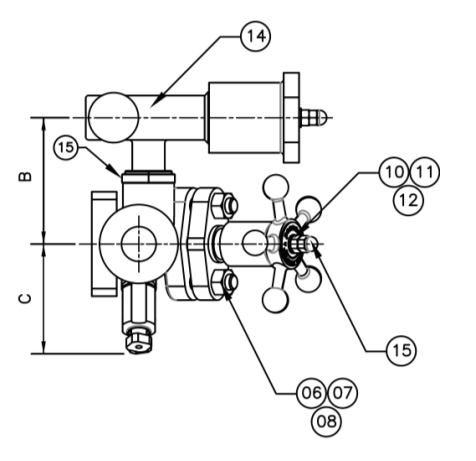

| MODEL | A | B | C | D | E |
|---|---|---|---|---|---|
| PCM41B | 135 | 80 | 65 | 117 | 134 |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Size & End Connection
5) Flow Direction – Left to Right / Right to Left
