Pennant Compact Module PCM22B is a complete unit in itself. It is a forged steel module comprising upstream isolation valve, a universal connection for fitting a steam trap & a Bypass valve. Steam trap test valve (optional) is provided on the downstream side of compact module.
End connection: Socket Weld/ Screwed

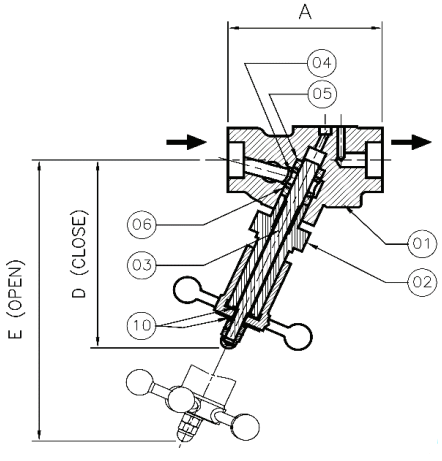

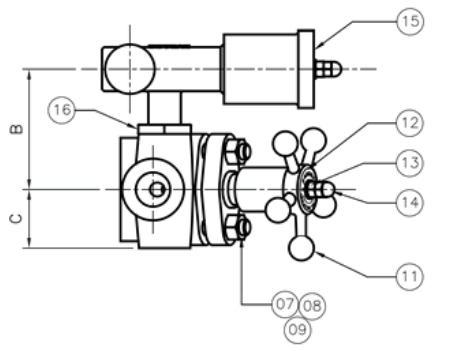

| No. | PART | MATERIAL | QTY. (Nos.) |
|---|---|---|---|
| 1. | BODY | ASTM A105 | 1 |
| 2. | BONNET | ASTM A105 | 2 |
| 3. | PISTON | AISI 304 | 2 |
| 4. | LANTERN BUSH | AISI 304 | 2 |
| 5. | SEALING RING LOWER | GRAPHITE WITH AISI 304 | 2 |
| 6. | SEALING RING UPPER | GRAPHITE WITH AISI 304 REINFORCED | 2 |
| 7. | STUDS | ASTM A193 Gr. B7 | 2 |
| 8. | NUTS | ASTM A194 Gr. 2H | 2 |
| 9. | BELLEVILLE WASHER | 50CrV4 | 4 |
| 10. | PLAIN WASHER | AISI 304 | 3 |
| 11. | HANDWHEEL | ASTM 216 Gr. WCB | 1 |
| 12. | LABEL | AISI 304 | 1 |
| 13. | NUT | MS/AISI 304 | 1 |
| 14. | DOME NUT | AISI 304 | 1 |
| 15. | BYPASS VALVE | ASTM A351 Gr. CF8 | 1 |
| 16. | LOCKNUT | AISI 304 | 1 |

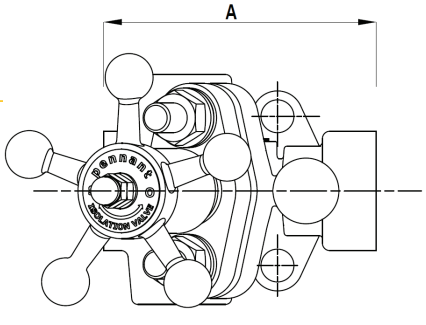

| MODEL | A | B | C | D | E |
|---|---|---|---|---|---|
| PCM22B | 91 | 80 | 65 | 117 | 134 |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Size & End Connection
5) Steam Trap – Thermodynamic PT18Y, PT17RU
6) Thermostatic PT33U etc.
7) Flow Direction – Left to Right / Right to Left
