Forged Brass Compact Pressure Reducing Value (Screwed)

Article Code: 1040B

Steam

Water

Oil

Air

Gases

Screwed Female Ends to IS 554 / BS 21 / ISO 7.
Most ideal for sensitive and a consistent fluid regulation.
Diaphragm-less, Piston Type.
Piston operated, hence more reliable than conventional diaphragm type PRV.
Rugged body, compact-sized, easy to install.
Most of the critical working components have a distinct edge of being hot brass forged.
Demands low maintenance and virtually noiseless.
Provided with Premium Quality Nitrile Rubber ‘O’Rings.
Facility provided to install a pressure gauge of 1/4″ BSP size to gauge the critically relevant outlet pressure.
Designed to suit every application requiring accurate pressure ratings.
All ‘O’ rings are of superior food grade material, hence ensuring absolute zero health hazard.

Available Sizes

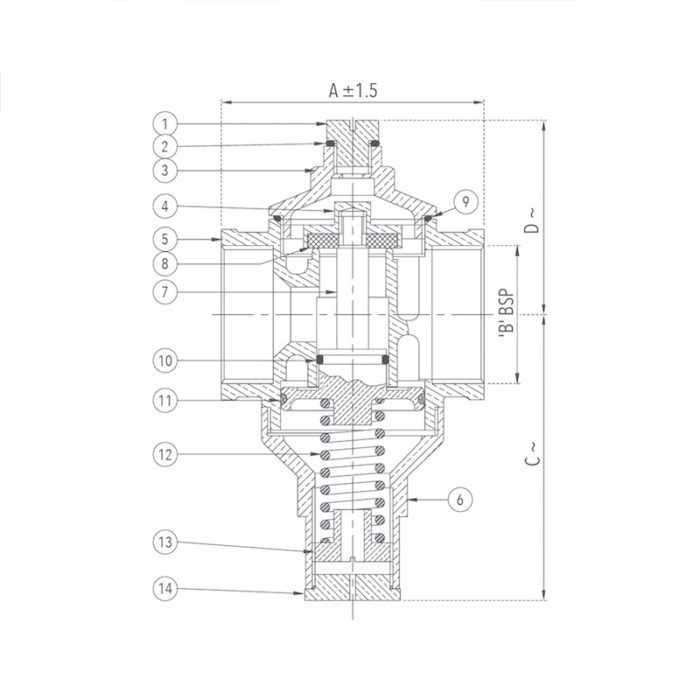

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Plug	Forged Brass	IS 6912 Gr. FLB	1
2	O – Ring	Nitrile Rubber	IS 5192 – 1	1
3	Bonnet	Forged Brass	IS 6912 Gr. FLB	1
4	Disc Holder	Forged Brass	IS 6912 Gr. FLB	1
5	Body	Forged Brass	IS 6912 Gr. FLB	1
6	Chamber	Forged Brass	IS 6912 Gr. FLB	1
7	Piston	Forged Brass / Bronze	IS 6912 Gr. FLB / IS 318 Gr. LTB 2	1
8	Disc	Nitrile Rubber	IS 5192 – 1	1
9	O – Ring	Nitrile Rubber	IS 5192 – 1	1
10	O – Ring	Nitrile Rubber	IS 5192 – 1	1
11	O – Ring	Nitrile Rubber	IS 5192 – 1	1
12	Spring	Spring Steel	EN 47 Gr. B	1
13	Adjustable Ring	Forged Brass	IS 6912 Gr. FLB	1
14	CAP	PVC	IS 15225	1

Size (Inches)	Size (mm)	A ±1.5	B	C ~	D ~
1/2	15	62	1/2"	68	44
3/4	20	62	3/4"	68	44
1	25	86	1"	93	61
1 1/4	32	91	1 1/4"	99	65
1 1/2	40	91	1 1/2"	99	65
2	50	91	2"	101	71
