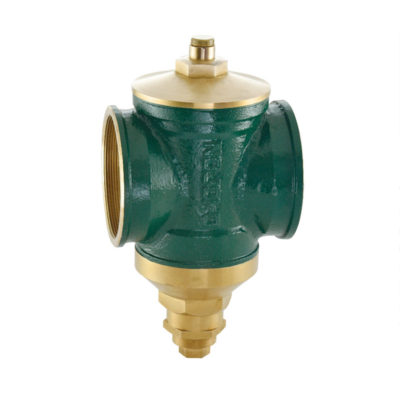

Bronze Compact Pressure Reducing Valve (Screwed)

Article Code: 1040A

Steam

Water

Oil

Air

Gases

Screwed Female Ends to IS 554 / BS 21 / ISO 7.
Piston operated, hence more reliable than conventional diaphragm type PRV.
Compact size, easy to Install.
Diaphragm-less, Piston Type.
Demands low maintenance and virtually noiseless.
Provided with Premium Quality Nitrile Rubber ‘O’Rings.
Facility provided to install a pressure gauge of 1/4″ BSP size to gauge the critically relevant outlet pressure.
Designed to suit every application requiring accurate pressure ratings.
All ‘O’ rings are of superior food grade material, hence ensuring absolute zero health hazard.

Available Sizes

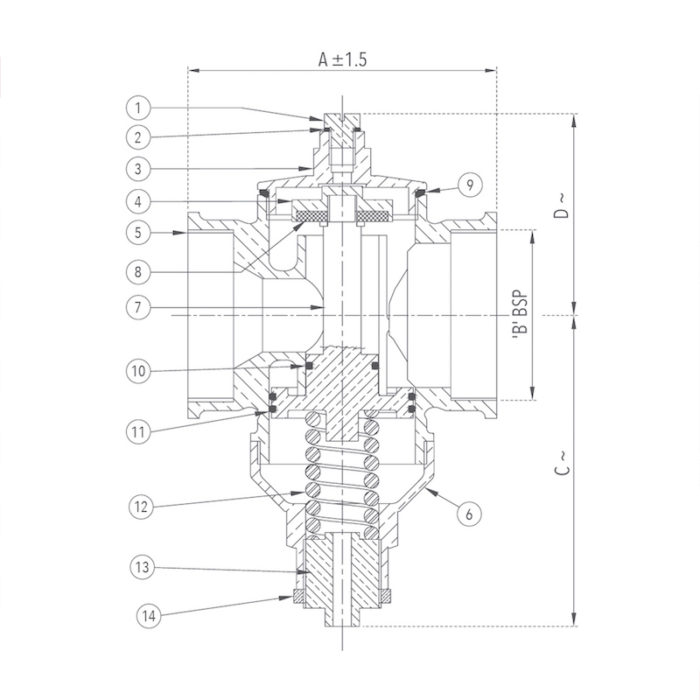

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Plug	Forged Brass	IS 6912 Gr. FLB	1
2	O – Ring	Nitrile Rubber	IS 5192 – 1	1
3	Bonnet	Bronze	IS 318 Gr. LTB 2	1
4	Disc Holder	Bronze	IS 318 Gr. LTB 2	1
5	Body	Bronze	IS 318 Gr. LTB 2	1
6	Chamber	Bronze	IS 318 Gr. LTB 2	1
7	Piston	Bronze	IS 318 Gr. LTB 2	1
8	Disc	Nitrile Rubber	IS 5192 – 1	1
9	Gasket	PTFE	– – –	1
10	O – Ring	Nitrile Rubber	IS 5192 – 1	1
11	O – Ring	Nitrile Rubber	IS 5192 – 1	1
12	Spring	Spring Steel	EN 47 Gr. B	1
13	Adjustable Ring	Bronze	IS 318 Gr. LTB 2	1
14	Locking Ring	Bronze	IS 318 Gr. LTB 2	1

Size (Inches)	Size (mm)	A ±1.5	B	C ~	D ~
2 1/2	65	135	2 1/2"	130	87
3	80	160	3"	150	101
4	100	160	4"	162	115
