Wafer Type Check Valve

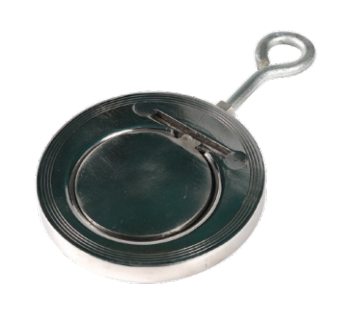

S.S. 316 Wafer Type Check Valves

Wafer Type Check Valve

DESCRIPTION:

The SS 316 Wafer Type Check Valve provides excellent corrosion resistance and mechanical strength, making it suitable for aggressive and high-temperature applications. The SS 316 disc ensures long service life, while the wafer design allows seamless integration into pipelines without requiring additional support structures.

Designed to prevent backflow, this valve ensures efficient forward flow with minimal pressure drop. It is widely used in chemical, pharmaceutical, marine, and industrial systems where durability, reliability, and corrosion resistance are critical.

Detailed Specifications

Body:ASTM A 351 Gr. CF8M / AISI 316
Pin:AISI 316
Rings:MOULDED NITRILE / NEOPRENE / PTFE
Mfg. Std.:GENERALLY CONFIRMING TO API 6D
Insp. & Test Std.:GENERALLY CONFIRMING TO API 6D
Ends:WAFER TYPE
Hyd. Test Pressure: BODY : 225 Psig (16 Kg/Cm²)
SEAT : 165 Psig (11.5 Kg/Cm²)
Size Range:40 MM TO 600 MM
