Thermostatic steam trap best suited for use in Clean steam systems. All wetted parts of this trap are manufactured using materials as per FDA guidelines.
Full stainless steel 316L construction. Condensate draining close to steam temperature ensures minimum condensate back-up. Highly polished for better cleaning and improved corrosion resistance. Surface finish Ra 0.4~0.8μm. Compact and light weight
177 oC
10.5 bar(g)
AISI 316L
End connection: Triclamp ends

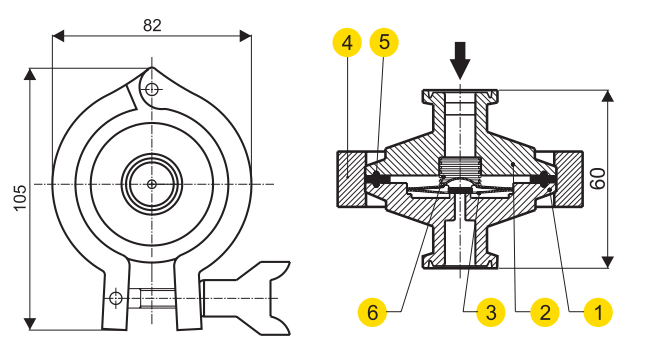

| NO. | PART | MATERIAL | QTY. (Nos.) |
|---|---|---|---|
| 1. | BODY | AISI 316L | 1 |
| 2. | COVER | AISI 316L | 1 |
| 3. | CAPSULE | AISI 316L | 1 |
| 4. | CLAMP | AISI 304 | 1 |
| 5. | GASKET | PTFE | 1 |
| 6. | SPRING | AISI 316L | 1 |
1) Inlet Pressure in bar(g)
2) Back Pressure in bar(g)
3) Operating Temperature in oC
4) Condensate Load in kg/hr
5) Size & Model
