Pennant Eccentric Rotary Plug Valve is a highperformance rotary valve designed for a wide range of industrial applications including high pressure and lowpressure steam, clean liquids, fine particle slurry media, sandy media and corrosive liquids gasses and erosive and abrasive slurries.
This valve can be used for a wide range of applications which promotes standardization and helps in minimizing stock. Additionally, the straight flow design helps in reducing the cost per Kv than the conventional type of control valve
#150, #300 bar(g)
A216 Gr. WCB
End connection: Flange #150, #300

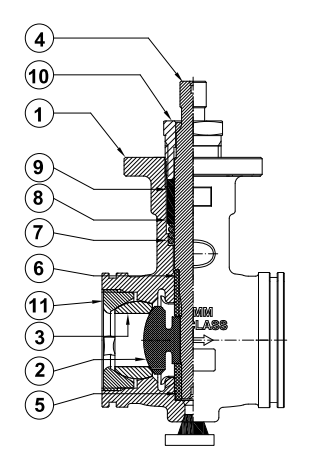

| SR. NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | WCB |
| 2 | Plug | SS+STELLITE |
| 3 | Seat | SS+STELLITE |
| 4 | Shaft | SS17-4PH |
| 5 | Lower Guide Bush | 440C |
| 6 | Upper Guide Bush | 440C |
| 7 | Spring | SS |
| 8 | Backup Ring | SS316 |
| 9 | Packing | PTFE/GRAPHITE |
| 10 | Gland Nut | SS304 |
| 11 | Seat Retainer | SS316/CF8M |
| SIZE | A | B | C | D | E |
|---|---|---|---|---|---|
| DN25 | 102 | 65 | 113 | 4 | 228 |
| DN40 | 114 | 73 | 130 | 6 | 253 |
| DN50 | 124 | 74 | 124 | 6 | 248 |
| DN80 | 165 | 90 | 146 | 8 | 313 |
| DN100 | 194 | 100 | 178 | 11 | 353 |
| DN150 | 229 | 122 | 244 | 17 | 436 |
| DN200 | 243 | 137 | 280 | 22 | 492 |
| Wafer | FL #150 | FL #300 | FL #600 |
|---|---|---|---|
| 4 | 5 | 6 | 8 |
| 6 | 8 | 10 | 12 |
| 6 | 10 | 11 | 14 |
| 14 | 20 | 24 | 26 |
| 19 | 27 | 34 | 45 |
| 44 | 54 | 69 | 94 |
| N.A | 82 | 101 | 138 |
