Series 7000/8000

3 Piece Ball Valve

DESCRIPTION:

Series 7000/8000 3-Piece Ball Valves are high-performance, full port ball valves designed for industrial applications. Series 7000 features CF8M stainless steel construction, while Series 8000 is built with WCB carbon steel. These valves offer versatile end connections including threaded, socket weld, butt weld, and flanged options, meeting industry standards for reliable shut-off and flow control.

SPECIFICATIONS:

• TMA: Max. NPS ¼ to 12 / DN 8 to 300

• PMA: Max. Threaded, Socket Weld, Butt Weld: ¼" to 4": 1000 psi WOG, 6" to 12": 400 psi WOG, Flanged: ASME B16.34 Class 150

• MOC: Series 7000: CF8M Stainless Steel, Series 8000: WCB Carbon Steel

• SEAT: TFM 1600, Tek-Fil©, RPTFE, UHMWPE, Cavity Fillers

Available Sizes

Detailed Specifications

Valve Sizes:¼" through 12" (DN 8 to 300)

Design Standard:MSS-SP-110

Threaded End Connections:ASME B1.20.1 NPT

Socket Weld End Connections:ASME B16.11

Butt Weld End Connections:MSS SP-72 / ASME B16.25 (Sch 40)

Flanged End Connections:ASME Class 150

Body Construction:High quality investment cast and solution annealed/normalized

Pressure Rating (Threaded, Socket Weld, Butt Weld):Sizes ¼" to 4": 1000 psi WOG
Sizes 6" to 12": 400 psi WOG

Pressure Rating (Flanged):ASME B16.34 Class 150

Steam Rating:150 WSP TFM | 425 WSP Tek-Fil

Product GAD

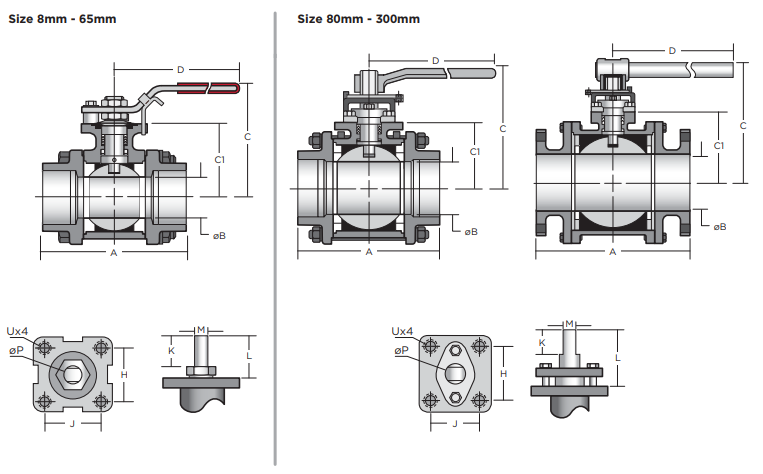

3 Piece Ball Valve Series 7000/8000 Design

Dimensions

DN	NPT, SW, BW	FLG	A		øB	C	C1	D	H	J	K	L	M	P	U (UNC)
DN	NPT, SW, BW	FLG	Extended SW	Extended BW	øB	C	C1	D	H	J	K	L	M	P	U (UNC)
8	72.1	—	—	—	9.5	66	39	165	29.7	29.7	8	14	6.4	9.3	10-24
10	72.1	—	—	—	12.7	66	39	165	29.7	29.7	8	14	6.4	9.3	10-24
15	72.1	111.5	254.9	229.5	15	66	39	165	29.7	29.7	8	14	6.4	9.3	10-24
20	85	147.2	264.8	236.2	20	74	42.1	165	29.7	29.7	8	14	6.4	9.3	10-24
25	92	151.7	271.9	240.7	25.4	87	52	200	35.7	35.7	11	19	8	10.9	1/4-20
32	110	—	284.8	249.8	32	92	56	200	35.7	35.7	11	19	8	10.9	1/4-20
40	123	204	299.2	261	38	105	66	250	49.5	49.5	14	23	9.5	15.7	5/16-18
50	142	229.6	317	272.6	50.8	115	75	250	49.5	49.5	14	23	9.5	15.7	5/16-18
65	184.5	—	—	304.8	65	128	86	250	72.1	72.1	17.5	29	12	19	5/16-18
80	202	256.5	—	304.8	76	163	94.5	390	90	47.6	44.5	78	17	28	1/2-13
100	230	353	—	304.8	102	180	110.5	390	90	47.6	44.5	78	17	28	1/2-13
150	457.2	394	—	—	152	310	182	1100	85.7	85.7	42	90	26	43.5	1/2-13
200	520.7	457	—	—	200	343	215	1100	85.7	85.7	42	90	26	43.5	1/2-13
250	558.8	533	—	—	250	373	253	1100	115	115	50	96	35	55	5/8-11
300	635	610	—	—	300	413	293	1100	115	115	50	96	35	55	5/8-11
