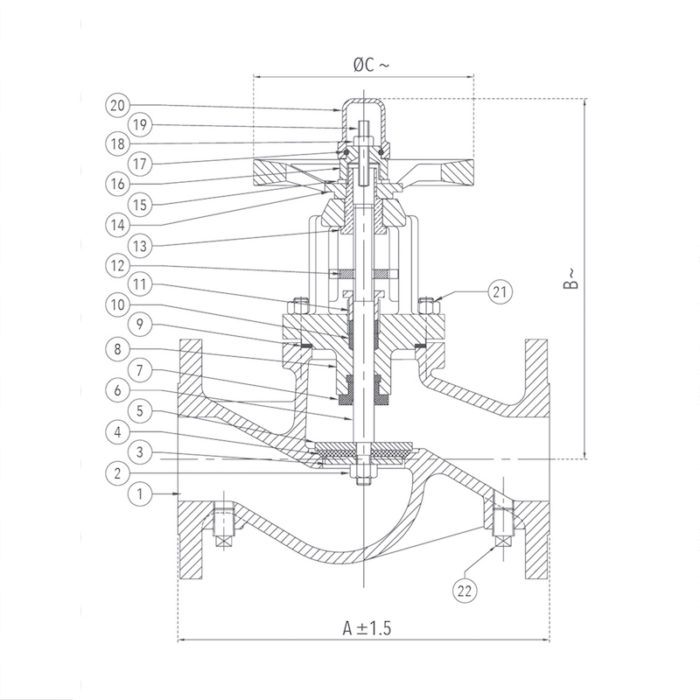

| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 2 | Nut | Carbon Steel | – – – | 1 |
| 3 | Washer | Carbon Steel | – – – | 1 |
| 4 | Disc Facing | EPDM Rubber | IS 5192 – 1 | 1 |
| 5 | Disc Holder | Carbon Steel | – – – | 1 |
| 6 | Stem | Stainless Steel | ASTM A 276 Type 410. | 1 |
| 7 | Stem Seal | EPDM Rubber | IS 5192 – 1 | 1 |
| 8 | Bonnet | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 9 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 10 | Gland Packing | PTFE | – – – | – |
| 11 | Gland | Stainless Steel | ASTM A 276 Type 410. | 1 |
| 12 | Indicator | Carbon Steel | – – – | 1 |
| 13 | Sleeve | S.G Iron | IS 1865 Gr. 400 / 15 | 1 |
| 14 | Handwheel | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 15 | Washer | Carbon Steel | – – – | 1 |
| 16 | Sleeve Nut | Stainless Steel | ASTM A 276 Type 410. | 1 |
| 17 | 'O' Ring | Nitrile Rubber | – – – | 1 |
| 18 | Nut | Carbon Steel | – – – | 1 |
| 19 | Adjusting Stud | Carbon Steel | – – – | 1 |
| 20 | End Cap | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 21 | Studs & Nuts | Carbon Steel | – – – | 4 Each |
| 22 | Plug | Bronze | IS 318 Gr. LTB2 | 2 |
| Size (Inches) | Size (mm) | A ±1.5 | B ~ | ØC ~ |
|---|---|---|---|---|
| 2 1/2 | 65 | 290 | 286 | 170 |
| 3 | 80 | 304 | 294 | 170 |
| 4 | 100 | 350 | 356 | 200 |
| 5 | 125 | 400 | 380 | 225 |
| 6 | 150 | 480 | 475 | 256 |
| 8 | 200 | 600 | 625 | 300 |
| 10 | 250 | 730 | 660 | 400 |
| 12 | 300 | 850 | 720 | 400 |
