Bronze Sleeve Packed Water Level Gauge (Screwed)

Article Code: 1049

Steam

Water

Oil

Air

Gases

Screwed Male End to BSP.
Automatic Shut Off Device in Water Arm.
Set available for both, Right Hand and Left Hand operations.
Premium Quality Sleeve, Reinforced by metallic eye holes provided to avoid any clogging of passage.
Each piece is fitted with self adjusting inverted taper plug (Stainless Steel) which forms a seal in the renewable moulded asbestos sleeve.
Sleeve can easily be positioned by a rib which fits in the corresponding groove of the body.

Available Sizes

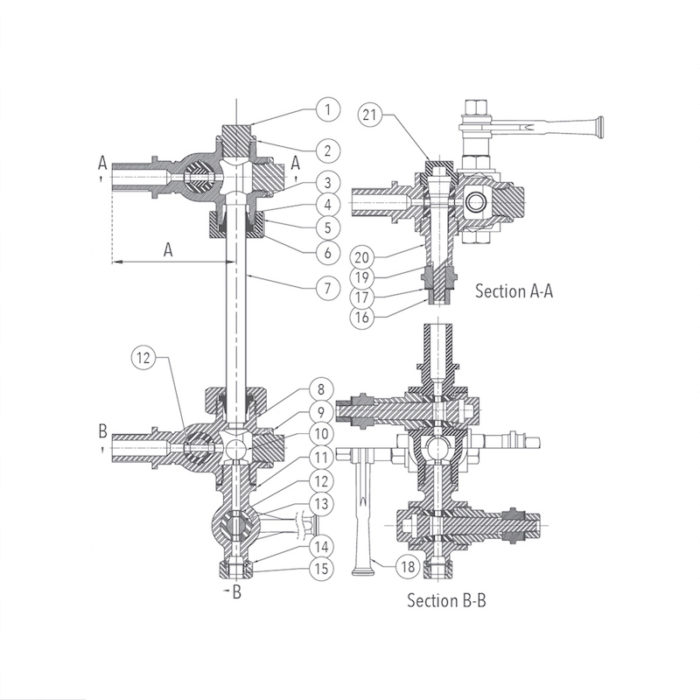

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Plug	Bronze	IBR 282 (a) (iv) Gr. B	2
2	Gasket	Steam Jointing Sheet	IS 2712 Gr. W/3	4
3	Upper Arm	Bronze	IBR 282 (a) (iv) Gr. B	1
4	Cone	Synthetic Rubber	IS 5192-1	2
5	Nut	Bronze	IBR 282 (a) (iv) Gr. B	2
6	Washer	Bronze	IBR 282 (a) (iv) Gr. B	2
7	Glass Tube*	Toughened Glass	– – –	1
8	Lower Arm	Bronze	IBR 282 (a) (iv) Gr. B	1
9	Plug	Bronze	IBR 282 (a) (iv) Gr. B	1
10	Ball	Stainless Steel	ASTM A 276 Type 304	1
11	Drain Valve	Bronze	IBR 282 (a) (iv) Gr. B	1
12	Sleeve Bush	Bronze	IBR 282 (a) (iv) Gr. B	6
13	Sleeve	Moulded Asbestos	– – –	3
14	Union Nut	Bronze	IBR 282 (a) (iv) Gr. B	1
15	Nipple	Bronze	IBR 282 (a) (iv) Gr. B	1
16	Nut	Carbon Steel	– – –	3
17	Name Plate	Brass / Aluminium	– – –	3
18	Handle	Bronze	IBR 282 (a) (iv) Gr. B	1
19	Stem	Stainless Steel	ASTM A 276 Type 410	1
20	Bonnet	Bronze	IBR 282 (a) (iv) Gr. B	1
21	Lock Nut	Bronze	IBR 282 (a) (iv) Gr. B	3

Size (Inches)	Size (mm)	A
1/2	15	118
3/4	20	118
