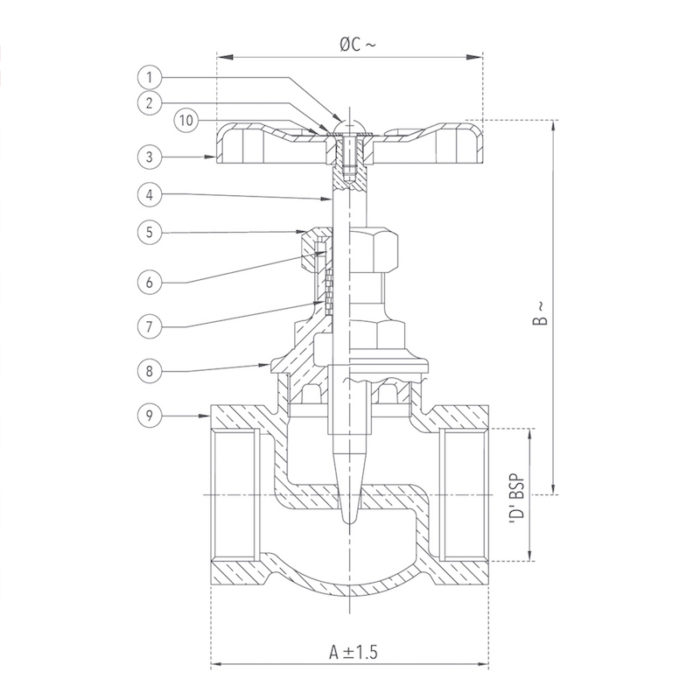

| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Screw / Bolt | Carbon Steel (Zinc Plated) | – – – | 1 |
| 2 | Washer | Carbon Steel (Zinc Plated) | – – – | 1 |
| 3 | Handwheel | Sheet Metal (Powder Coated) | – – – | 1 |
| 4 | Stem | Forged Brass | IS 6912 Gr. FLB | 1 |
| 5 | Gland Nut | Forged Brass | IS 6912 Gr. FLB | 1 |
| 6 | Gland | Forged Brass | IS 6912 Gr. FLB | 1 |
| 7 | Gland Packing | PTFE | – – – | – |
| 8 | Bonnet | Bronze | IS 318 Gr. LTB2 | 1 |
| 9 | Body | Bronze | IS 318 Gr. LTB2 | 1 |
| 10 | Name Plate | Aluminium | – – – | 1 |
| Size (Inches) | Size (mm) | A ±1.5 | B ~ | ØC ~ | D |
|---|---|---|---|---|---|
| 1/2 | 15 | 48 | 85 | 60 | 1/2" |
| 3/4 | 20 | 55 | 92 | 65 | 3/4" |
| 1 | 25 | 65 | 100 | 70 | 1" |
| 1 1/4 | 32 | 77 | 110 | 80 | 1 1/4" |
| 1 1/2 | 40 | 90 | 125 | 90 | 1 1/2" |
| 2 | 50 | 102 | 142 | 110 | 2" |
