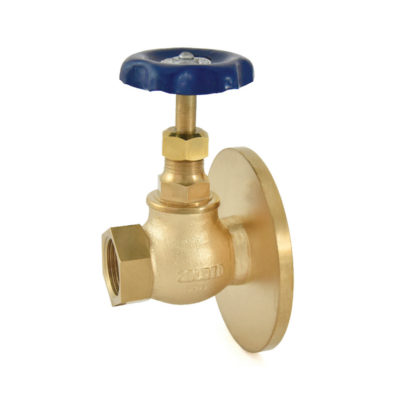

Bronze Globe Valve (One Side Flanged) with PTFE Seating

Article Code: 1004

Suitable For

Steam

Water

Oil

Air

Gases

Salient Features

Inlet Side Flanged to BS 10 Table ‘D’ and Outlet Side Screwed Female End to IS 554 / BS 21 / ISO 7.
Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat.
Designed sheet metal handwheel for a firm grip and convenient operation.
Premium Quality PTFE Gland Packing.
Medium Pattern.
Ideal for transformers, even for less viscous oil.

Pressure Rating PN:
Test Pressure (Hydrostatic) :
Shell : 24 kg/cm²g (340 psig)
Seat : 16 kg/cm²g (225 psig)
Maximum Working Temperature : 225^oC

Available Sizes

Description

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Screw / Bolt	Carbon Steel (Zinc Plated)	— — —	1
2	Washer	Carbon Steel (Zinc Plated)	— — —	1
3	Handwheel	Sheet Metal (Powder Coated)	— — —	1
4	Stem	Forged Brass	IS 6912 Gr. FLB	1
5	Gland Nut	Forged Brass	IS 6912 Gr. FLB	1
6	Gland	Forged Brass	IS 6912 Gr. FLB	1
7	Gland Packing	PTFE	— — —	–
8	Bonnet	Bronze	IS 318 Gr. LTB2	1
9	Body	Bronze	IS 318 Gr. LTB2	1
10	Disc Nut	Bronze	IS 318 Gr. LTB2	1
11	Disc	Bronze	IS 318 Gr. LTB2	1
12	Disc Facing	PTFE	— — —	1
13	Retaining Nut	Forged Brass	IS 6912 Gr. FLB	1
14	Split Pin	Brass	— — —	1
15	Washer (Optional)	Brass Sheet	— — —	1
16	Name Plate	Aluminium	— — —	1

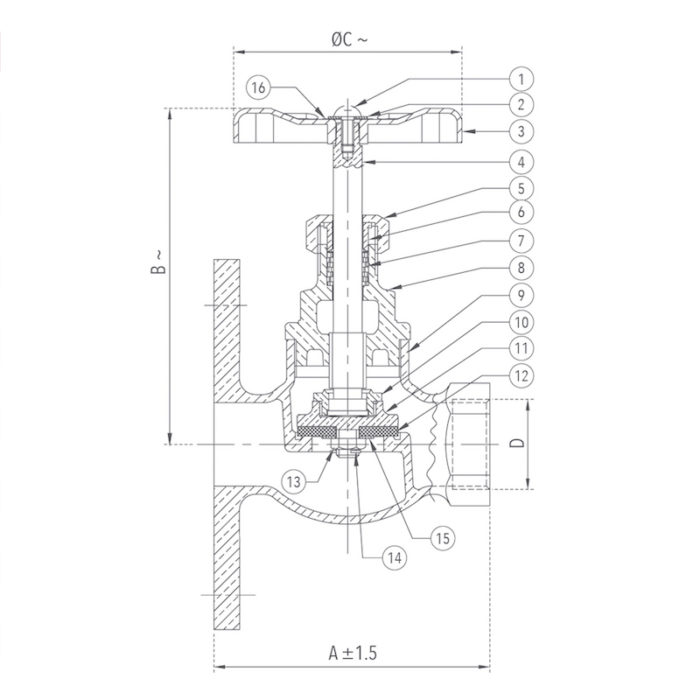

Product GAD

Bronze Globe Valve (One Side Flanged) with PTFE Seating Design

Sizes / Dimensions

Size (Inches)	Size (mm)	A ±1.5	B ~	ØC ~	D
1/2	15	53	85	60	1/2"
3/4	20	67	90	65	3/4"
1	25	80	98	70	1"
1 1/4	32	86	115	80	1 1/4"
1 1/2	40	91	127	90	1 1/2"
2	50	106	140	110	2"
